  • Product No.:HS-D42
  • Price:negotiation
  • type:electric waste stripper
  • Weight:5.5KG
  • chain:#2 chain
  • Revolution:3400 RPM
  • Working pressure:6~8KG
  • Motor:Chinese Brand
  • paper type:it suitable for all kinds of paper, especially for kraft paper / corrugating medium paper and so on
  • Online Inquiry

Carton box waste removing machine waste paper stripping machine power plug-in carton waste edge cleaning machine


TECHNICAL INFORMATION

Item Number

HS-D42

Type

Electrical stripper

Color

BLUE

Revolution

3400 turns /min

Chain

#2 with 18 cogs (large size)

Working power

750W

Power supply

220v~250v

Net weight

5.5 KG

Minimum cutting size

5MM

Suitable paper

all kinds of paper. Efficiency will be higher for kraft paper / corrugating medium paper

Gross Weight

6.5KG

Package Dimensions

490*170*240mm


HS-D42 High speed paper carton board electric waste stripper

1.For waste margin stripping of cardboard, thin corrugated paper and common corrugated paper in printing industry.

2.Manual stripping for hours, stripping machine 10 to 30 minutes to complete, stripping efficiency is improved by nearly 10 times, greatly shorten the delivery cycle.

3.No damage for bonding area while stripping, improve the efficiency.

4.Compact configuration, almost the same weight as portable polishing machine, easy to use, men and women can operate the machine after simple training.

5.Reducing the occurrence of industrial injury, and other side, Such as wrist, back, shoulder injuries and repetitive operation motion.

6.The tooth chain adopts high strength alloy steel after heat treatment process, high hardness, wear resistance, long life, and easy replacement.


HS-D42 electrical waste strippers main advantages compare to pneumatic strippers

1, Convenient. Easy to change position, no need to be fixed by air compressor position. You can use it whenever and everywhere and just need to contact the power that with 220V~250V.

2, No need to maintain it. Since it is connect to the power and there is no water vapor that may enter in the stripper.

3, Adjustable speed. There are 6 gears to adjust the speed. Easy and simple to operate with the speed you want.

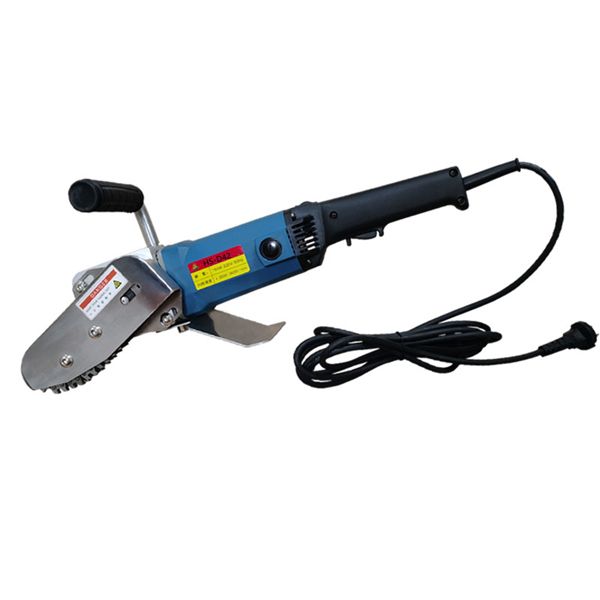

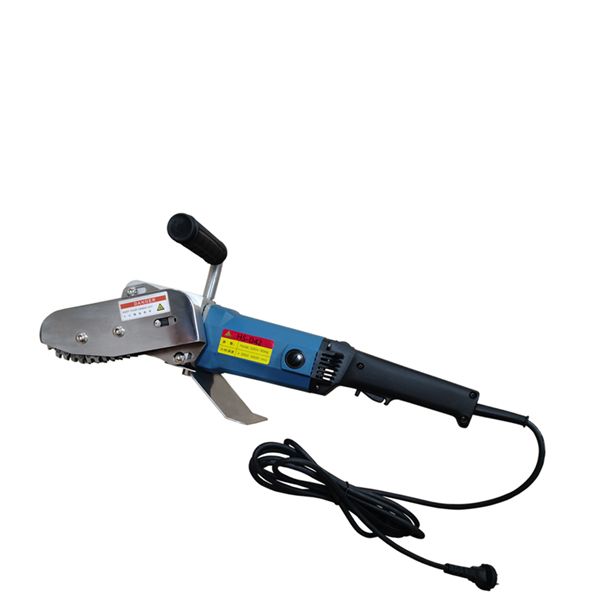

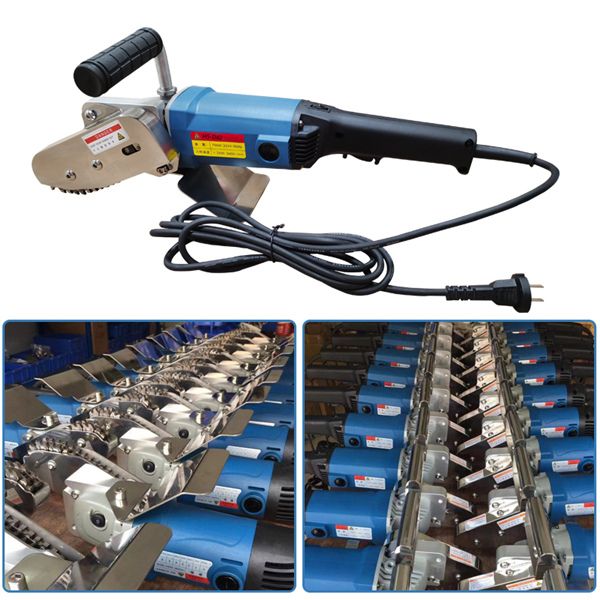

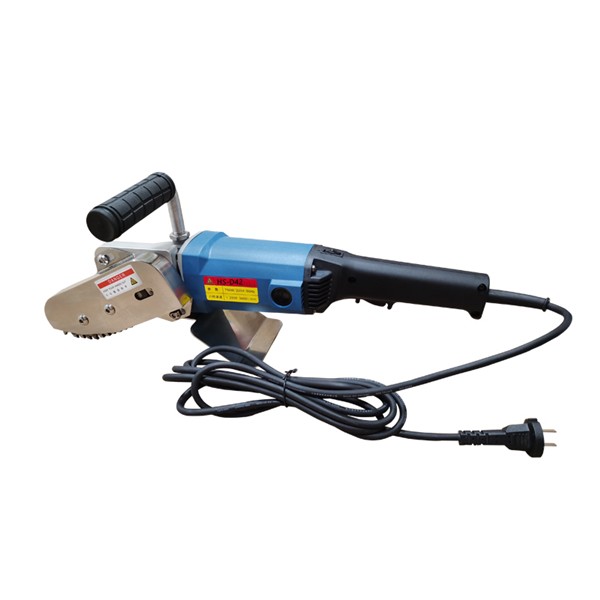

HS-42 picture



HS-D42 High Power Electric Waste Remover:

1.HS-D42 electric carton waste stripper is an energy-saving version of carton waste stripper. The power of this machine is 1400W, six speed and power sdjustable.
2.The voltage of the machine is 220v, the two pin plug and the power line are extended to 2.6M , plug in.
3.The electric carton waste stripper perfectly solves the problem of removing waste edges in printing processing enterprises without air compressor;
4.Chaoyi brand electric waste remover adopts pure copper movement, increases the coil, the motor stability is super high;
5.The main control board of Chaoyi electric waste stripper machine is designed with over-current, over-voltage and over temperature protection devices to
ensure the safe use of the machineer machine;
6.The structure of this machine is made of ABS material and stainless steel alloy material. the products meet the requirements of safety production.

Operation Manual of Electric Waste Remover:

1.Please operate the maching with both hands to ensure that the connection plug and other use environment are clean and tidy;
2.Use the electric carton waste stripper to work for 30 minutes, need to stop for 1 minute, the machine has good heat dissipation, and the operator can also get the
corresponding rest time.
3.Lubricate the chain and gear before going to work every day, and clean the machine surface before going to work;
4.On the body and motor, please make sure that there is no paper gauze blocking the air suction hole and exhaust hole to ensure that the exhaust and heat
dissipation channels are unblocked;
5.When using the carton waste stripper machine, please configure the cutter die and the waste edge to be separated by the cutter to ensure the waste cleaning
effect.

How to use the HS-D42 electric waste stripper?
1, Connect the power with 220v~250v.
2, Put it onto the waste edge paper.
3, Turn on the power switch and press it down a little big, then the waste edge parts will be cut down as airflight.

Precautions for the use of electric waste remover:

1. Heat dissipation:

The electric waste stripper needs a heat dissipation process. It is recommended to let the stripper rest for 30 seconds after working continuously for about 15 minutes. It will have a great effect on the life of the machine's parts.

2. Speed: 1400W is the high-power electric machine. It is recommended that you use the speed of 1-4 gears to remove waste when using. The speed below the 4th gear is the most suitable speed for the stripping, which can protect the internal parts of the machine. Moreover the effect is the best, and the strength is also the best when removing waste. Try not to use the 5 gears and 6 gears as much as possible.

3. Cleaning of the machine:

After get off work every day, please use an air gun to blow away the paper scraps in the machine casing/chain gap/motor hot hole, etc., so as to effectively dissipate heat to protect the stripper and extend its life.

4. When the machine rolls paper or the chain does not run or other situations, pls immediately unplug the power supply and clean up the paper scraps, then use it again. Do not turn on the power when the paper is jammed to prevent the inside of the movement from exploding gear.

5. Voltage requirements:

220V two-phase electricity, two-pin socket, 2.6m standard cable length.

6. Removing waste process:

It should be lightly pressing down stripper with both hands to stripping waste in one go. Do not use the stripper to beat the waste paper to remove waste.

7. Safety precautions:

, Operator's safety: Please operate the waste stripper with both hands, not one-handed, to prevent the chain from hurting people.

, the safety of the waste stripper:  do not let stripper to touch wooden bottom plate or the hard iron objects when it is working, otherwise the chain will be broken.

8. Try not to let the machine work continuously. After 15 minutes of use, let the machine rest for 30 seconds.

9. Add ordinary engine oil to the connection of the chain and gear in time, lift the waste stripper with both hands. Then turn on stripper and let it idling for one minute.

10. When the power of the motor drops, please replace the carbon brushes in time.


How to maintain electric carton waste stripper in daily working day?
1, Apply the regular engine oil or pneumatic tool oil to the chain of machine;
2, Then turn on the machine to let it rotate about one minutes.
3, The machine should be maintained after used 2-3 days.(once 2-3 days).  If the using time is more than 12 hrs per day, you should maintain the machine everyday.
