Mini Pneumatic Angle Grinder for Cutting nick grinder

Application Field

The Steel Rule Nick Grinder is specifically designed for grinding “nicks” of varying widths and depths in the cutting rule of steel rule dies used for die cutting and creasing paper, cardboard, and corrugated board.

THIS MACHINE SHOULD NOT BE USED FOR ANY OTHER PURPOSES.

Workstation

The nick grinder should be installed and operated in the die room on a suitable working table, or at the die-cutting machine with the die pulled out and supported by the two carrier arms of the die cutter.

Maximum Safety Precautions

Maintain a clean and organized work area.
Use appropriate lighting in work areas.
When not in use, store the nick grinder in a safe place to prevent accidental activation. If stored in a drawer, disconnect the unit from the air supply line.
Assembly Instructions

The nick grinder comprises the following main components:

Grinding head assembly (grinding head and base plate - upper part).

Air motor.
3m air hose with on/off valve.
The unit is delivered with the grinding head assembly and air motor fully assembled.

Connect the threaded part of the on/off valve to the air motor at the unmarked air inlet hole.

Secure the on/off valve firmly to the air motor by tightening the nut.

Turn the swiveling valve housing to a vertical position with the knob facing upwards.

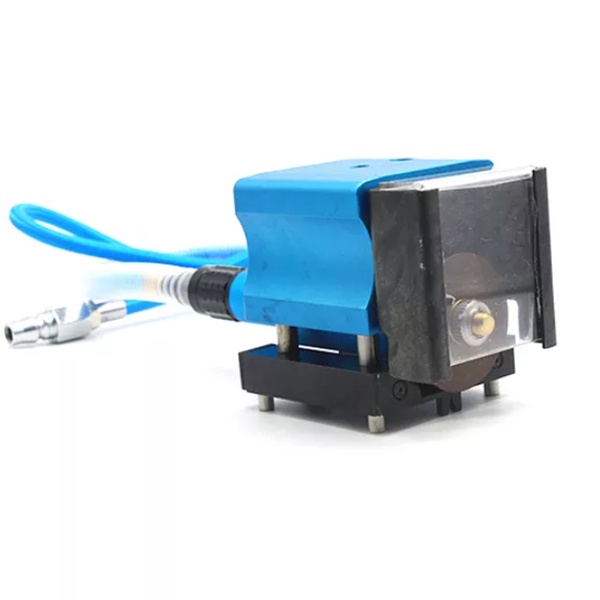

Picture of CY-07 Air Nick Grinder

Oder Steps
