TECHINICAL INFORMATION

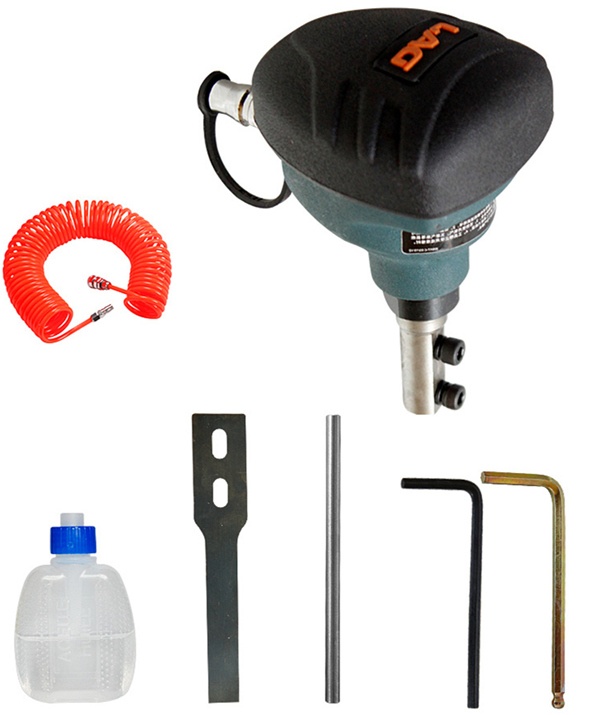

CY-005 PICTURE SHOW




OPERATING INSTRUCTIONS AND MAINTENANCE

To ensure optimal performance and longevity of the pneumatic tool, the following steps should be taken before and after each use:

Prior to use, apply 3 drops of special oil or diesel into the air inlet, then connect the air pipe and press for a few minutes. For continuous usage, it is advisable to reapply the oil every 2 hours.

After connecting the air source, firmly grasp the top handle and press it down vertically to initiate operation.

Regularly inspect the locking mechanism of the punching needle during use. If it becomes loose, promptly secure it.

When the tool is not in use, it is recommended to unplug the power source or turn off the air supply.

In the event of any malfunction, discontinue use and arrange for timely repairs to ensure continued performance and safety.

These maintenance practices will help to uphold the tool’s efficiency and extend its service life.

BENEFITS OF THE MANUAL INNER HOLE WASTE STRIPPER

Dust Protection
Utilize high-quality dust caps to effectively shield the gun body from dust infiltration, safeguarding the internal components from potential damage.

Impact-Resistant Soft Leather Casing
Ergonomically designed by experts in ergonomics, the soft leather case provides a comfortable grip, reducing hand fatigue and enabling extended usage without discomfort.

Robust Air Inlet
The air inlet undergoes a quenching heat treatment process, resulting in a high-hardness interface that exhibits strong anti-corrosion properties, enhanced wear resistance, and an extended service life for the gun.

Seven Varieties of Punching Needles
We provide seven types of punching needles at no additional cost.

MATERIALS

• High-grade alloy tool steel (imported motor from Taiwan)
• White steel
• Stainless steel (outer cover)
• Particularly suitable for small and precision stripping tasks
• Available in round and flat molding

PRODUCTION FEATURES

Stripping by hammer takes up to 3 hours, while the stripping machine completes the task in 10 to 30 minutes, significantly reducing the delivery cycle.

The compact structure of the stripping machine makes it as convenient to use as a common handheld polisher, with a weight similar to portable polishing machines. It is user-friendly, and both men and women can operate it after basic training, minimizing damage to adhesive parts.

Efficient waste removal enhances the process efficiency, especially for automatic box packaging.

The stripping machine’s power supply features a pneumatic motor from Taiwan, eliminating the damage issues associated with ordinary handheld polishers and ensuring equipment longevity and safety.

The tooth chain of the stripping machine is made of high-strength alloy steel and undergoes a heat treatment process, resulting in high hardness, wear resistance, and easy replacement, thereby extending its service life.

Reduces the occurrence of industrial injuries, such as wrist, back, and shoulder injuries, as well as repetitive motion-related issues.

Offers three different tooth chains suitable for various cardboard boxes or corrugated carton stripping, including small teeth for cardboard, medium teeth for cardboard and corrugated paper, and large teeth for corrugated paper.

ORDERING AND SHIPPING

Upon receiving your order, we will issue a proforma invoice if required.

Please arrange payment and provide the bank slip.

Once we confirm your payment, we will promptly dispatch the stripper to you during business hours via FedEx or DHL and provide you with a tracking number the following day.

We will diligently monitor the shipping details and provide updates until successful delivery.

We are available online 24/7 to assist you.

We will maintain regular contact to address any usage-related issues promptly.
