Paper Plate Die Cutter Cutting Machines with High Quality Desktop mini Inner Hole for Paper Waste Stripper MachineOpening Inner Hole Paper Plate Die Cutter Cutting Machines

**Key Functions**

1. Used for cleaning holes after the die-cutting process.
2. Suitable for cleaning holes of various shapes in products like paper cards, labels, tags, etc.
3. The number of holes to be cleaned at once can be adjusted based on the die-cutting board.
4. Simple to operate with high efficiency in removing inner hole waste post-die-cutting.

SPECIFICATIONS FOR Inner Hole Waste Stripping Machine
Model Number	CY-630	CY-720	CY-920
Machine Size	7506301500mm	10007201580mm	13009201580mm
Working surface size	500*600mm	1000*720mm	1300*920mm
Orifice board size	350*600mm	900*600mm	1200*800mm
Air pressure	0.8BAR	0.8BAR	0.8BAR
Pressure	1.5T	1.5T	2T
Route	150mm	150mm	150mm
Net Weight	400kg	500kg	600kg

**Pneumatic Inner Hole Waste Removal Machine**

This machine is primarily used in the color printing and packaging industry to remove residual waste from the inner holes (round holes, square holes, long holes, airplane holes, shaped holes, etc.) left after die-cutting various color boxes and cartons. It is also suitable for products such as hangtags, cartons, and color boxes. The machine can remove one or more holes at a time, offering high efficiency in waste paper removal.

**Features**

1. **Precision and Ease of Use** – The machine operates with high accuracy and is easy to manage.
2. **Customizable Molds** – Molds can be customized, and the punching dies can be added or removed. Multiple molds can be installed simultaneously, allowing for the cleaning of several waste holes at once, which boosts operational efficiency.
3. **Non-Destructive Punching** – The punching die applies pressure to the product without compromising its integrity.
4. **Built-In Cleaning Box** – The machine includes an integrated cleaning box for efficient waste collection.

The **semi-automatic inner hole waste removal machine** is designed for the printing and packaging industry to clear residual waste from inner holes after die-cutting various types of color boxes and cartons. It efficiently handles waste removal for round, square, long, and irregular-shaped holes, among others.

This machine incorporates key components designed for accuracy and ease of operation. Its adjustable locking plate can hold multiple molds simultaneously, allowing for the clearing of dozens of waste holes at once, significantly reducing manual labor and improving overall efficiency.

**Product Description**

The **CY-630** is a pneumatic waste stripping machine designed to remove excess material from paper, corrugated cardboard, foil, plastic, foam, and rubber. It can accommodate different types of stripping tools and separation plates, with precise vertical guidance of the stripping plate. The machine’s table features movable stops to position materials accurately during processing.

This machine also functions as a semi-automatic waste removal system for inner holes, specifically designed for cleaning waste paper from inner holes after die-cutting various color boxes and cartons. It is ideal for cleaning waste from plane holes, round holes, square holes, long strip holes, and irregularly shaped holes in the printing and packaging industries.

Key components of the machine are designed and manufactured with precision to ensure smooth operation and ease of use. The adjustable locking plate enables the simultaneous use of multiple molds, allowing for the efficient removal of numerous waste holes, greatly reducing labor costs and improving productivity.

**Advantages of the Semi-Automatic Waste Removal Machine:**

- **Labor Cost Savings**: Reduces the need for manual waste removal, cutting down on labor costs.
- **Improved Product Quality**: Minimizes product damage and enhances the overall quality of the product.
- **Increased Production Efficiency**: Boosts actual production efficiency by 30%-50%.
- **Efficient Hole Waste Removal**: Effectively removes waste from products with multiple holes, unlike traditional manual methods.
- **Compact and User-Friendly**: Features a compact structure, simple operation, and a user-friendly interface that requires minimal training for operators.

**Additional Features:**

- **Easy Setup and Safe Operation**: Simple to set up and operate with a focus on safety.
- **Foot Pedal Activation**: Machine activation through a foot pedal, with active safety light barriers for added protection.
- **Control Panel**: All functions are managed through a control panel for ease of use.
- **Status Indicators**: Visual indicators show the current status of the machine.
- **Manual Material Loading**: Materials are loaded manually for processing.
- **Quick Adjustments**: Rapid adjustments can be made for new production requirements.
- **Waste Disposal**: Convenient waste disposal into a designated container.
- **Versatile Stripping Tools**: Option to use universal or specialized stripping tools and plates.
- **Gentle Material Holding**: Materials are held gently before the press movement, eliminating the need for manual holding.
- **Quick Changeover**: The machine is ideal for smaller tasks and offers quick changeover time.
- **Safety Barrier**: Optical safety barriers ensure the machine is not activated without proper authorization.
- **Rear Service Access**: Easy access for maintenance from the rear of the machine.

This machine is designed to be safe, efficient, and easy to operate, making it a valuable asset for any color printing or packaging enterprise.

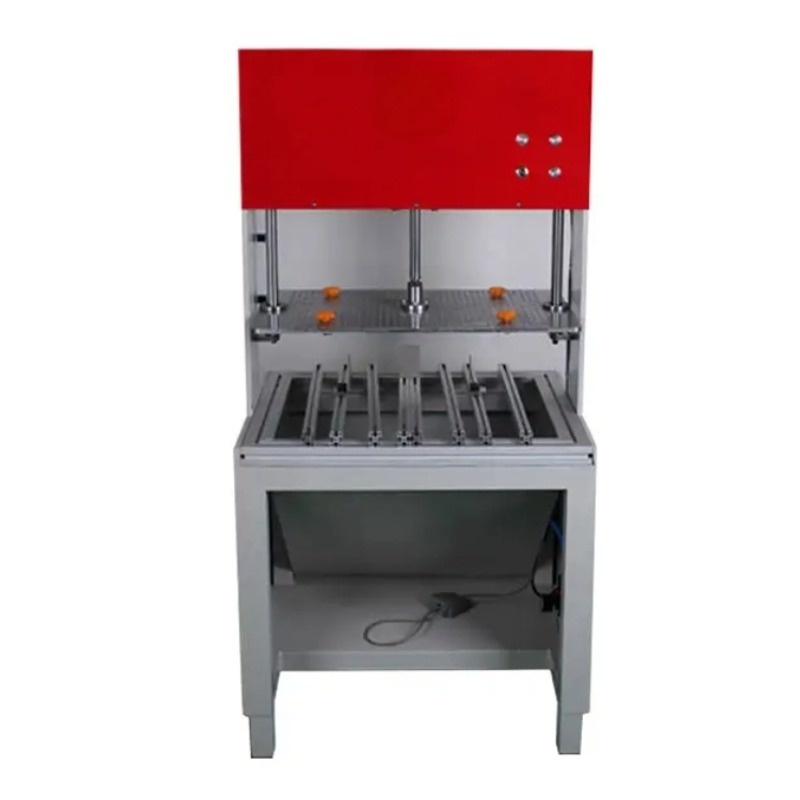

CY-630 Photos Show

Why choose us?

Infrared Safety Detection Sensor
The sensor prevents the machine from pressing down if the hand is not removed from the working desk, ensuring production safety.

Large Size Double Magnetic Ring Cylinder
The adoption of the 125-type cylinder ensures stable machine operation and smoother waste paper removal.

Foot Switch
The high-grade foot switch enables automatic waste cleaning, featuring a metal anti-misstep housing.

Additional Working Desk
Expanding the material preparation table provides space to set aside the product, increasing the product drag and drop length for more convenient waste clearance.

CY-630 Advantages

Minimize manual waste removal.
Reduce labor costs associated with product damage.
Achieve 40%-60% higher production efficiency.
Higher efficiency for products with multiple holes, as it can be completed in one go, unlike manual waste stripping. Special molds and needles are available upon request.
Compact design, user-friendly operation, suitable for both male and female operators after basic training.
