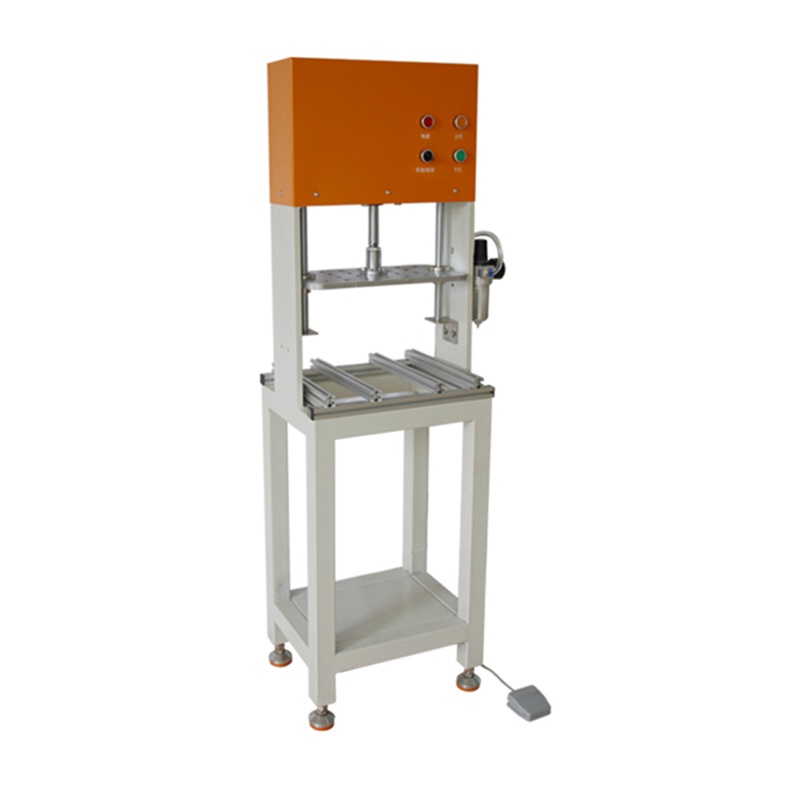

HS-450 Semi-Automatic Inner Hole Waste Stripping Machine

The HS-450 Semi-Automatic Inner Hole Waste Stripper is a precision-engineered solution designed for the efficient removal of internal waste from flat, die-cut cartons and corrugated sheets. This machine significantly improves production efficiency and product quality in packaging and printing operations, eliminating the tedious, inconsistent, and labor-intensive manual process of "picking" waste material.

By employing a semi-automatic, foot-pedal-controlled punching mechanism, the HS-450 ensures powerful, clean, and consistent stripping of inner scrap (such as handles, windows, or intricate cutouts) from single-layer cardboard and E-flute/B-flute corrugated boards. Its robust construction and user-centric design prioritize operator safety, ease of use, and reliable performance.

---

Key Features & Benefits:

• High-Efficiency Operation: Drastically reduces waste removal time compared to manual picking, boosting overall production line throughput.

• Consistent & Clean Stripping: Delivers uniform punching force with every cycle, ensuring clean edges and preventing damage to the carton, which is critical for final product quality.

• Ergonomic & Safe Design: Features a semi-automatic cycle controlled by a safety foot pedal, keeping the operator's hands free and at a safe distance from the punching head. The sturdy frame minimizes vibration during operation.

• Robust Construction: Built with a heavy-duty steel frame and precision components to withstand continuous industrial use, ensuring long-term durability and stability (Machine Stress: 1.2T).

• Simple Setup & Operation: Requires minimal training. Operators simply position the die-cut sheet on the worktable, align the target waste area, and press the foot pedal.

• Compact Footprint: Its space-saving design (Machine Dimensions: 450*350*1550MM) makes it easy to integrate into existing production lines or workshops.

---

Technical Specifications:

Parameter	Specification
Model	HS-450
Type	Semi-Automatic Inner Hole Waste Stripper
Operating Voltage	220V, 50/60Hz (Standard)
Required Air Pressure	0.8 BAR
Machine Stress Capacity	1.2 Tons
Working (Punching) Stroke	100 MM
Worktable Dimensions	350 x 250 MM
Machine Dimensions (L*W*H)	450 x 350 x 1550 MM
Net Weight	72 KG
Gross Weight	92 KG
Package Dimensions (L*W*H)	450 x 600 x 1650 MM (0.45 CBM)
Package Type	Wooden Shelf / Wooden Case

---

Typical Applications:

Ideal for post-die-cutting processes in the production of:

• Gift boxes

• Electronics packaging

• Food and beverage cartons

• Display stands and point-of-sale (POS) materials

• Any carton requiring the removal of internal window, handle, or complex design waste.

Note: Specifications are subject to improvement without prior notice. Please verify the exact electrical and pneumatic requirements for your local workshop before installation.
