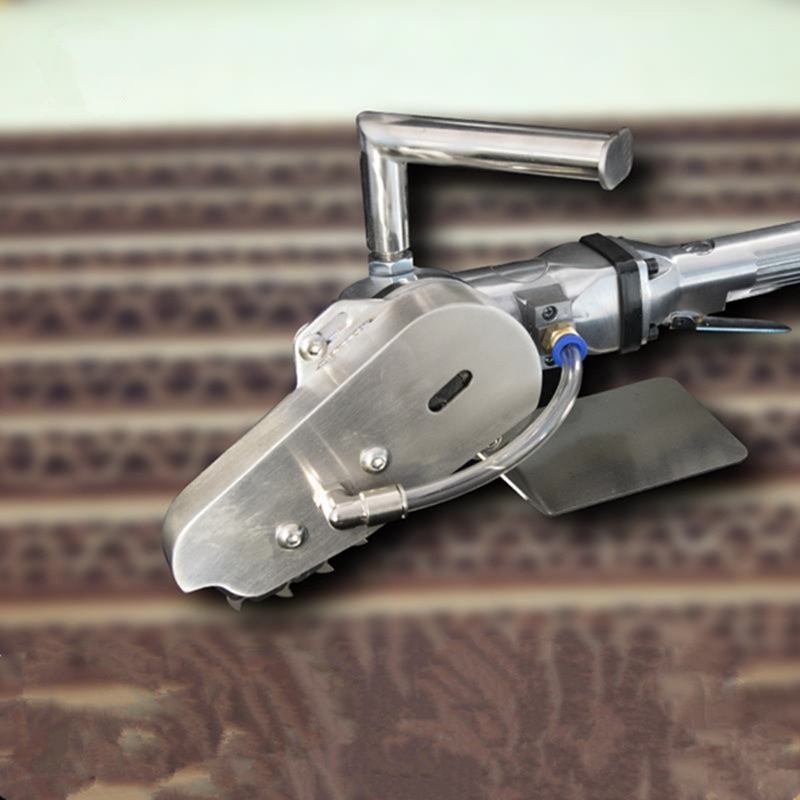

Pneumatic Paperboard Stripper

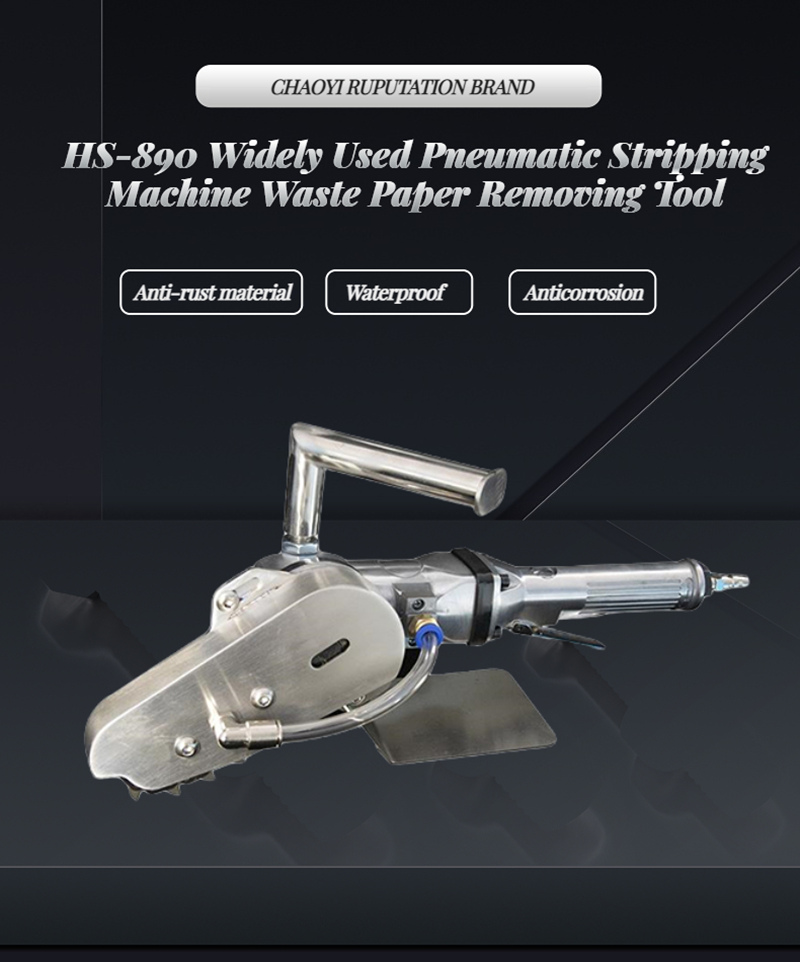

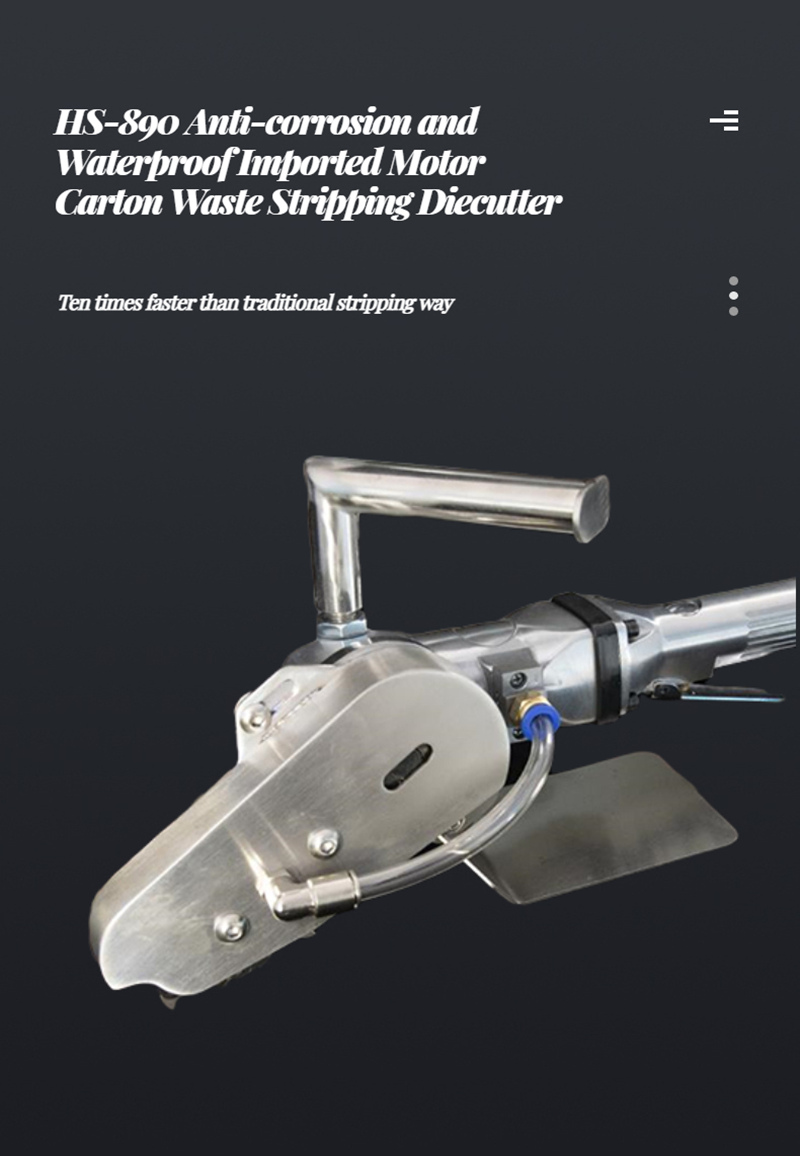

The HS-890 carton waste stripper is a pneumatic precision tool engineered for fast, clean removal of die-cut waste. Featuring an ultra-narrow chain capable of stripping minimal waste edges from 5mm, it excels at clearing both shallow and deep-set waste from stacks of carton, corrugated board, and craft paper. Designed for durability and ease of use, it includes an optional two-hand safety system and is supported by a dedicated lubrication unit to ensure motor longevity and consistent performance.

How to Operate

Setup:

For pneumatic models: connect to an air compressor (≥0.6 MPa).

For electric models: plug into a 220V power supply.

Operation:

Hold the clutch handle with your left hand and the motor handle with your right.

Turn on the machine and position the rotating chain on the waste edge.

Apply gentle downward pressure to guide the tool along the waste strip.

Safety Note:

Always clear waste from the chain promptly and keep hands clear during operation to avoid injury.

Key Features

Narrow-Chain Design: Enables precise stripping of waste as fine as 5mm, even in deep stack areas.

High Efficiency: Removes die-cut waste rapidly, significantly reducing manual labor time.

Durable & Low-Maintenance: Built with a robust pneumatic motor and reinforced components.

Safety-Optional: Available with a two-handed safety system for compliance with US/UK standards.

Complete Lubrication Unit Included: Comes with filter, pressure gauge, lubricator, and mounting kit for optimal motor protection.

Why Choose HS-890?

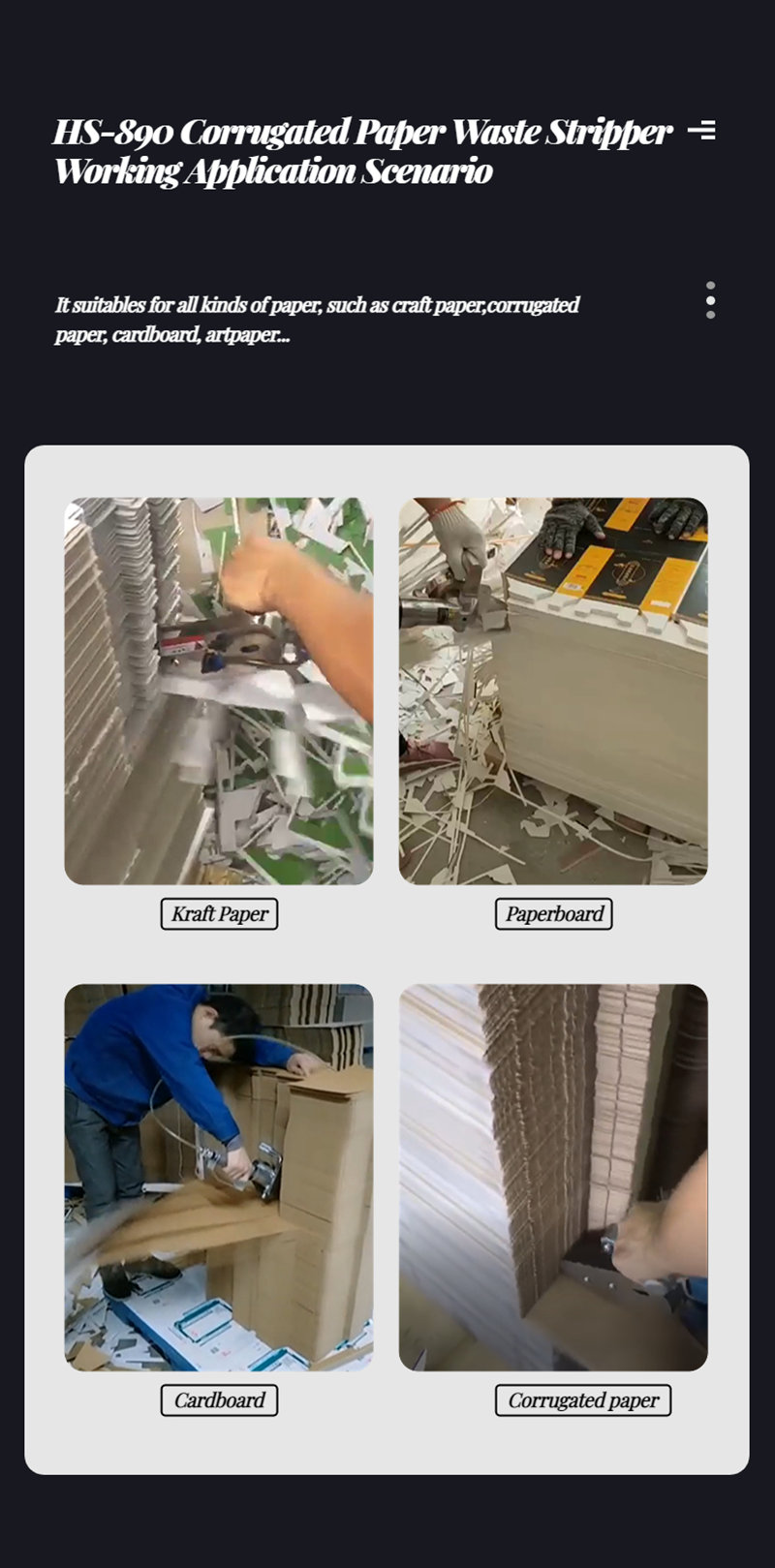

Processes a wide range of materials: folding cartons, e-flute, gray board, corrugated board, and more.

Maintains sheet alignment and prevents damage to blanks during waste removal.

Over 15 years of proven global performance in carton and board processing.

Includes essential accessories for immediate operation and extended tool life.

Requirements for using our technology

To utilize our technology, it is essential that the outer trim is cut into trim sections. The clutch edge, which is an exception, will be reciprocally stripped out on the left and right sides. Please refer to the diagram below for details on waste segments.





Optimal Setup Guide
For best results, segment waste edges to let the chain engage at the widest point. Reducing cut marks further speeds up stripping, lowering labor costs significantly. The HS-890 swiftly clears trim section by section, delivering high‑speed, efficient waste removal.

Maintenance Guide
Perform maintenance every 2–3 days (daily if used over 15 hours/day).

Pneumatic models: Apply air‑tool oil to the air inlet and engine oil to the chain. Run the machine for one minute. An oil‑water separator is recommended for daily moisture removal.

Electric models: Oil the chain, then lift and run the machine for one minute. Replace carbon brushes when motor power drops.
Refer to the manual for full details.

Product Overview
Designed for the printing industry, these machines clear waste from cardboard, corrugated paper, and fine corrugated paper (150–500g). A pneumatic motor drives the chain and teeth to strip waste quickly and cleanly.

Key Features

High efficiency: Increases productivity 5–10×

Portable & user‑friendly: Lightweight, simple structure

Reliable & safe: Pneumatic operation ensures durability and meets fire‑safety standards

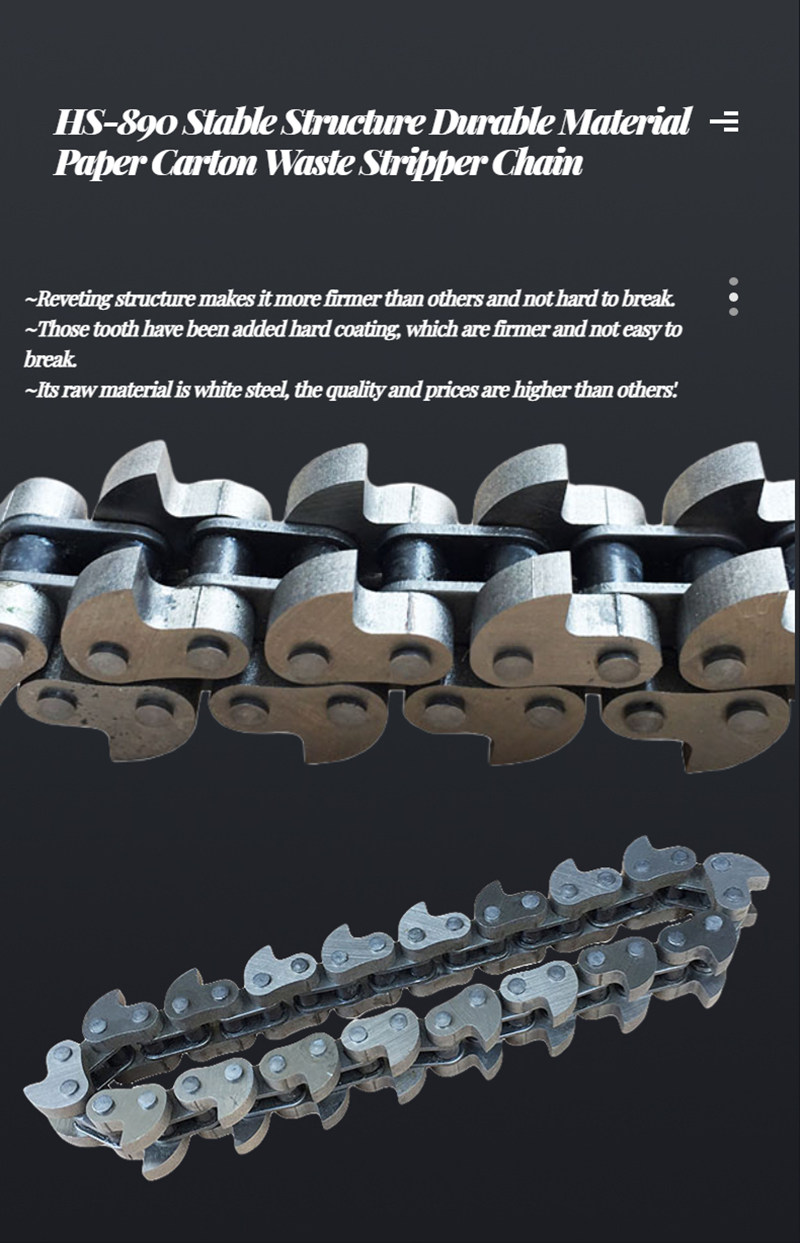

Durable chain: Made of high‑hardness steel for long service life

Technical Parameters

Operating pressure: 0.63 MPa

Required air compressor: > 4 kW

Air Compressor Requirement: Over 4 KW.
