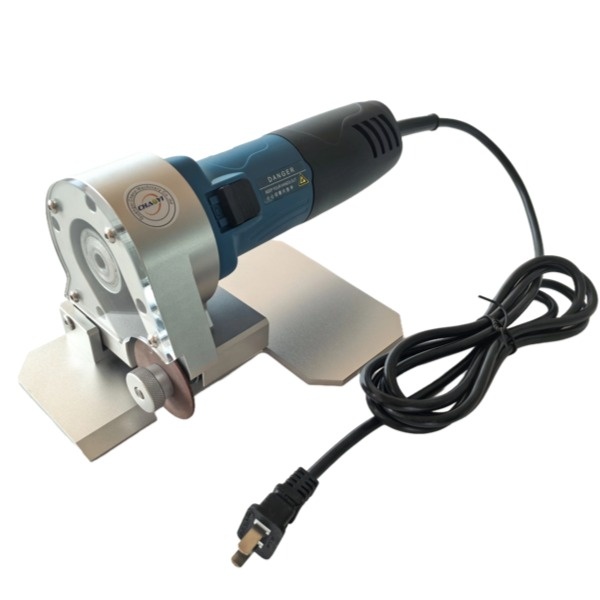

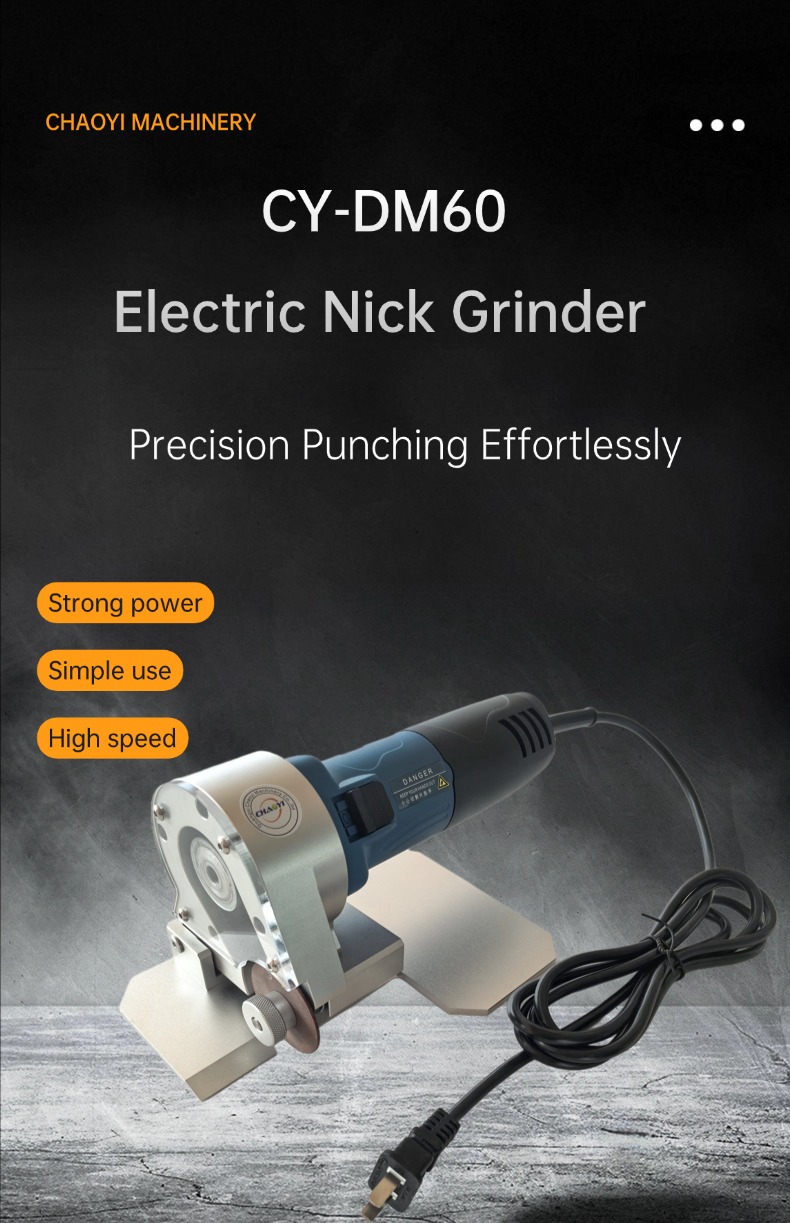

CY-DM60 Electric Nick Grinder & Notcher for Die-Cutting Dies

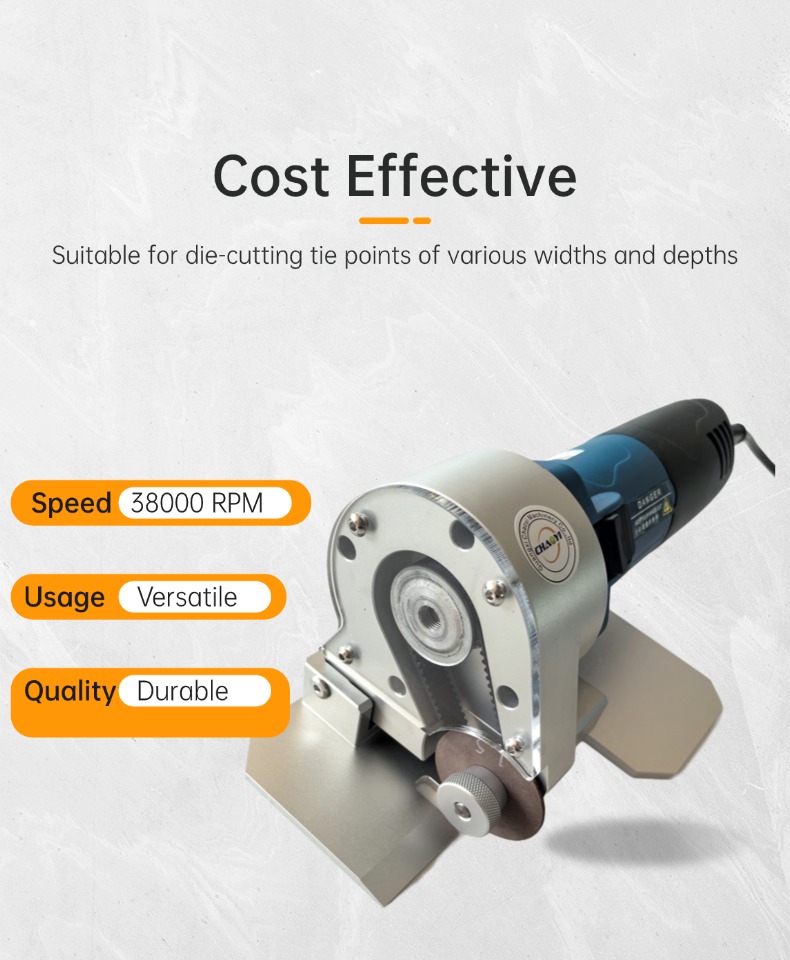

The CY-DM60 Electric Nick Grinder is a professional-grade, plug-and-play solution designed for precision notching in both solid and corrugated board cutting dies. As the electric counterpart to pneumatic models, it delivers the same core functionality—grinding precise "nicks" of variable widths and depths—with the added convenience of direct electrical operation, eliminating the need for an air compressor.

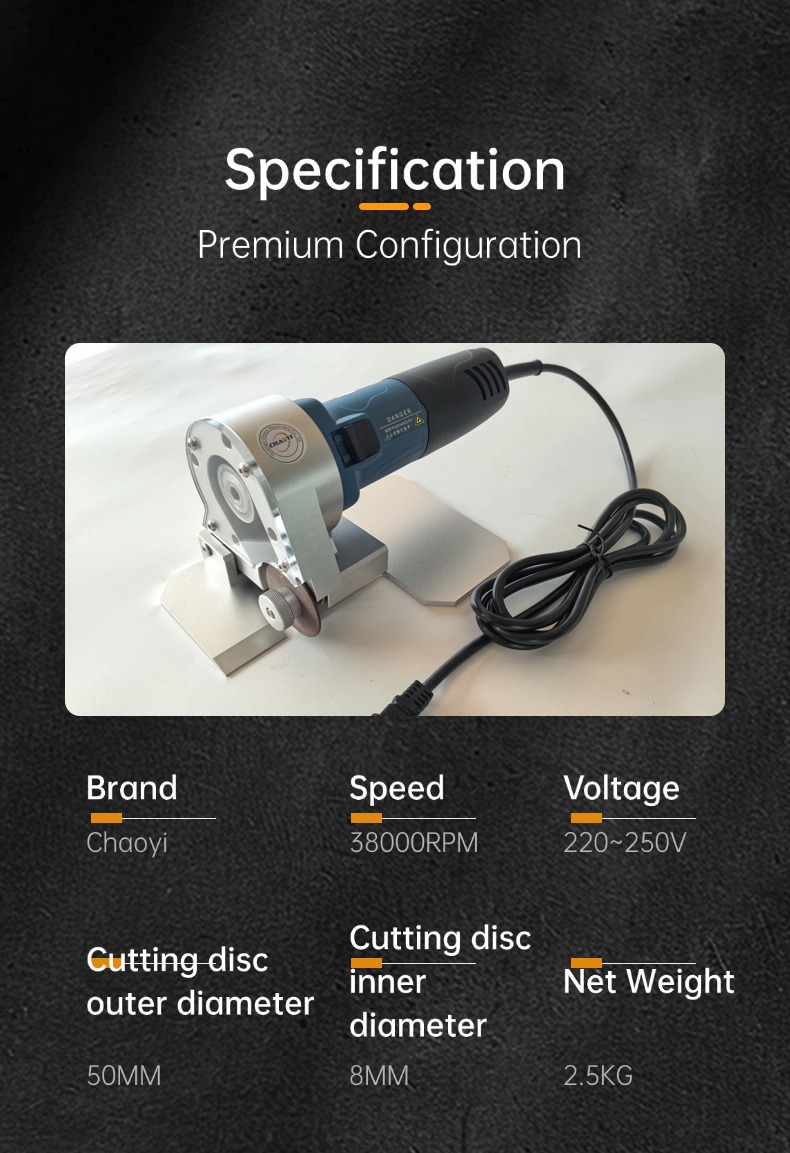

Product Specifications:

• Type: Electric Nick Grinder

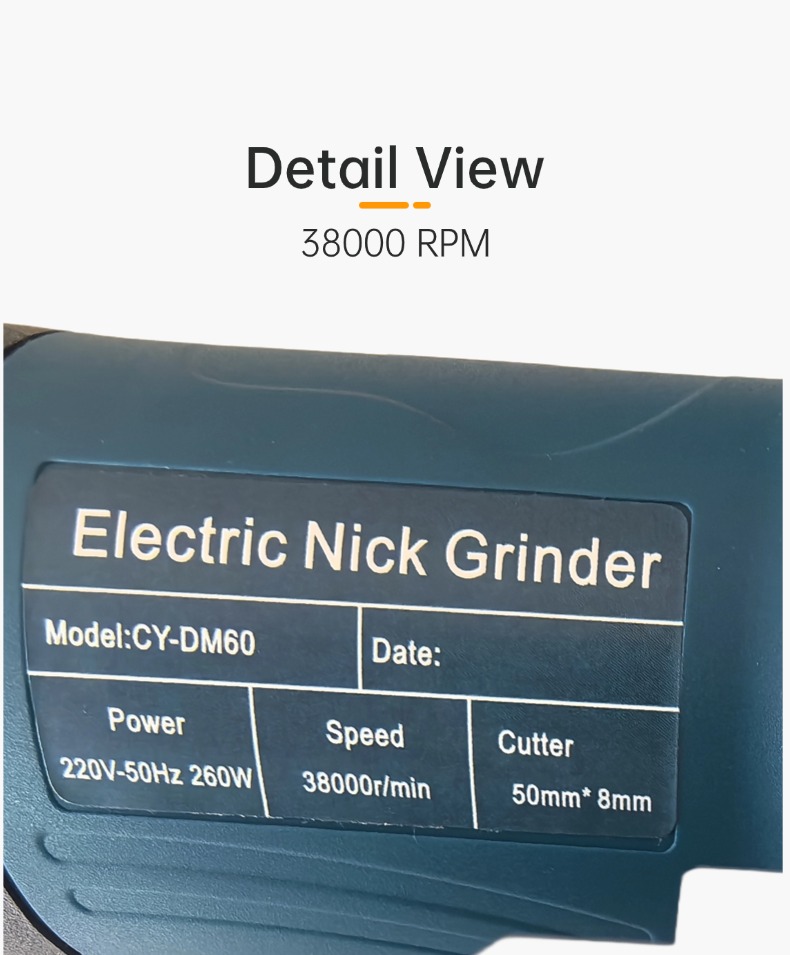

• Operating Voltage: 220 V

• Rotational Speed: 38,000 RPM

• Cutting Disc: Outer Diameter 50 mm, Inner Diameter 8 mm

• Tool Dimensions (LxWxH): Approx. 300 x 145 x 125 mm

• Net Weight: 2,500 g

Key Features & Advantages:

• High-Performance Electric Motor: Driven by a 220V power supply, the robust motor achieves a high speed of 38,000 RPM, ensuring efficient and clean grinding action without compressed air.

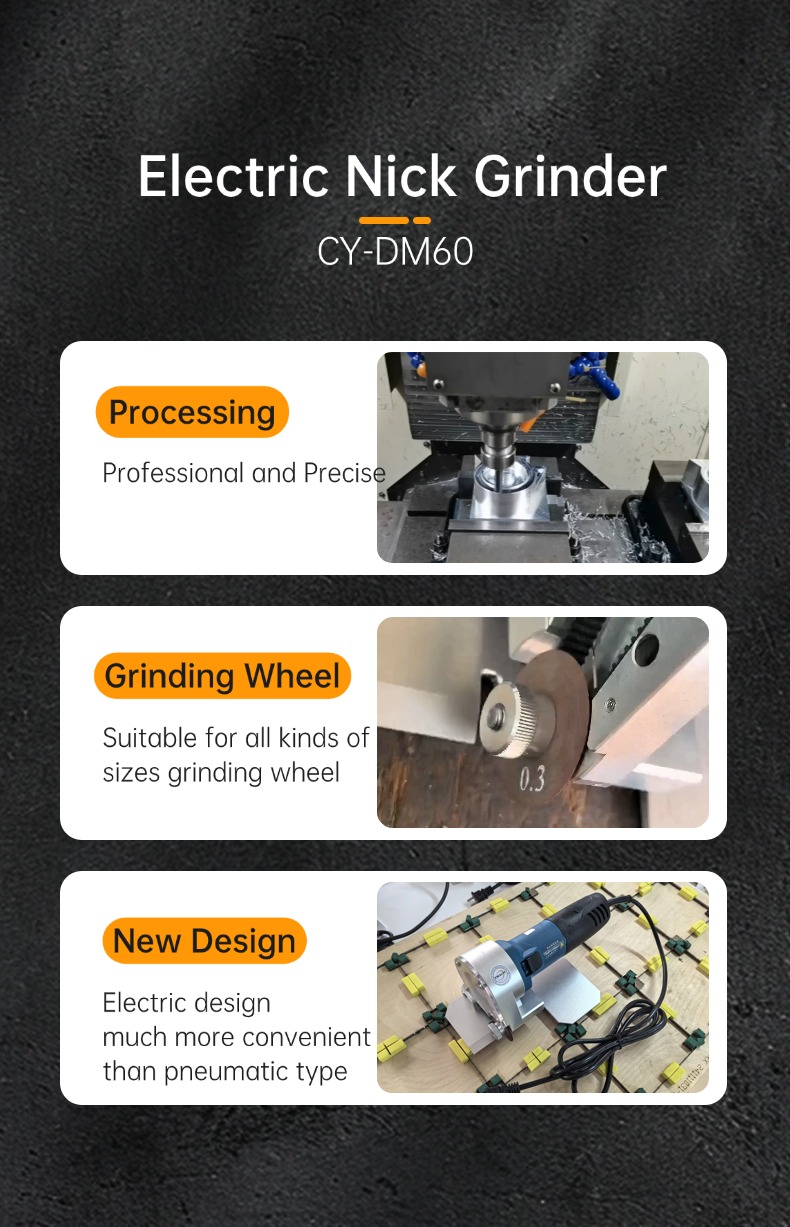

• Comprehensive Accessory Kit: Includes 10 precision grinding wheels in 7 thicknesses (0.3mm to 1.5mm) and a 4mm hexagonal wrench for wheel changes, covering a wide range of notch width requirements.

• Precision Depth Adjustment: An integrated control screw allows for fine, micrometer-level adjustment to achieve the exact nick depth required for your specific die board.

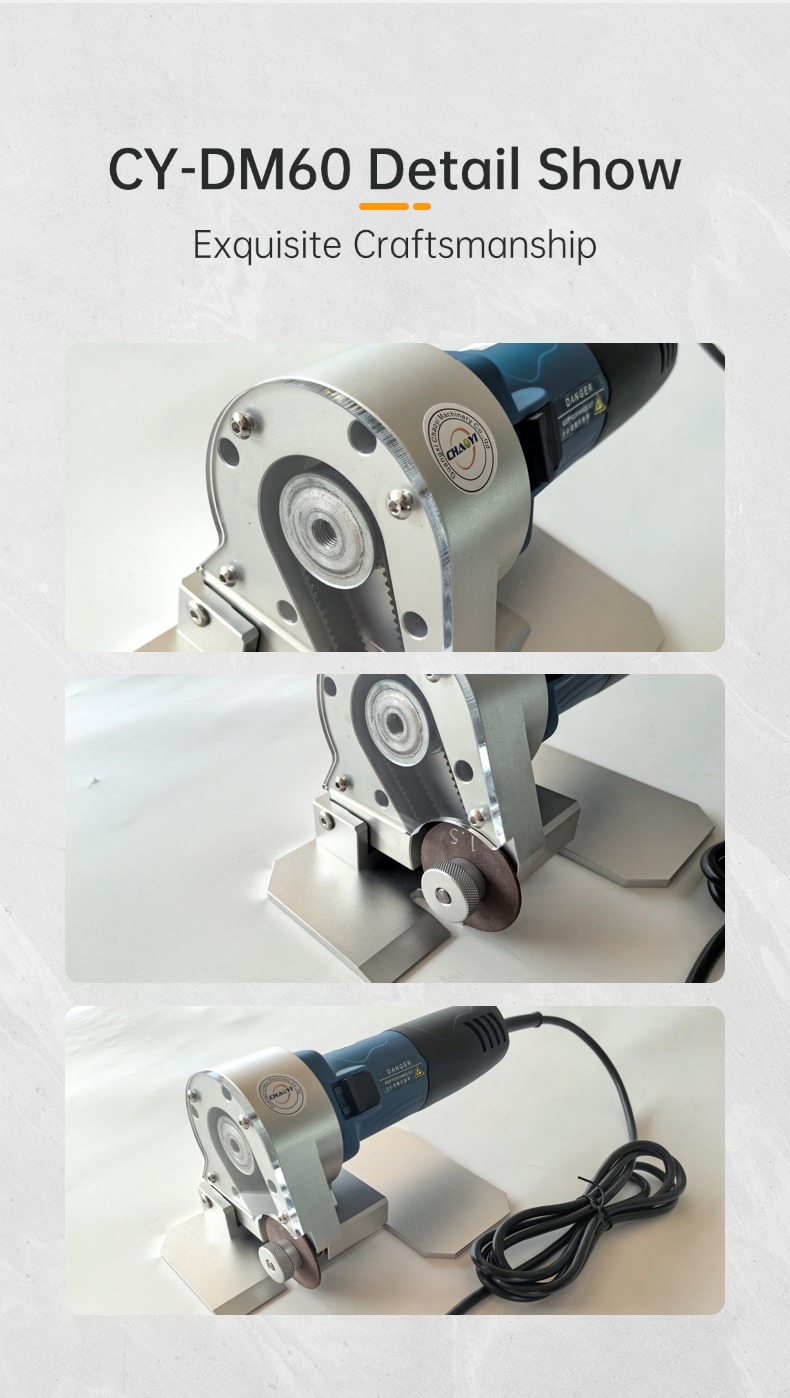

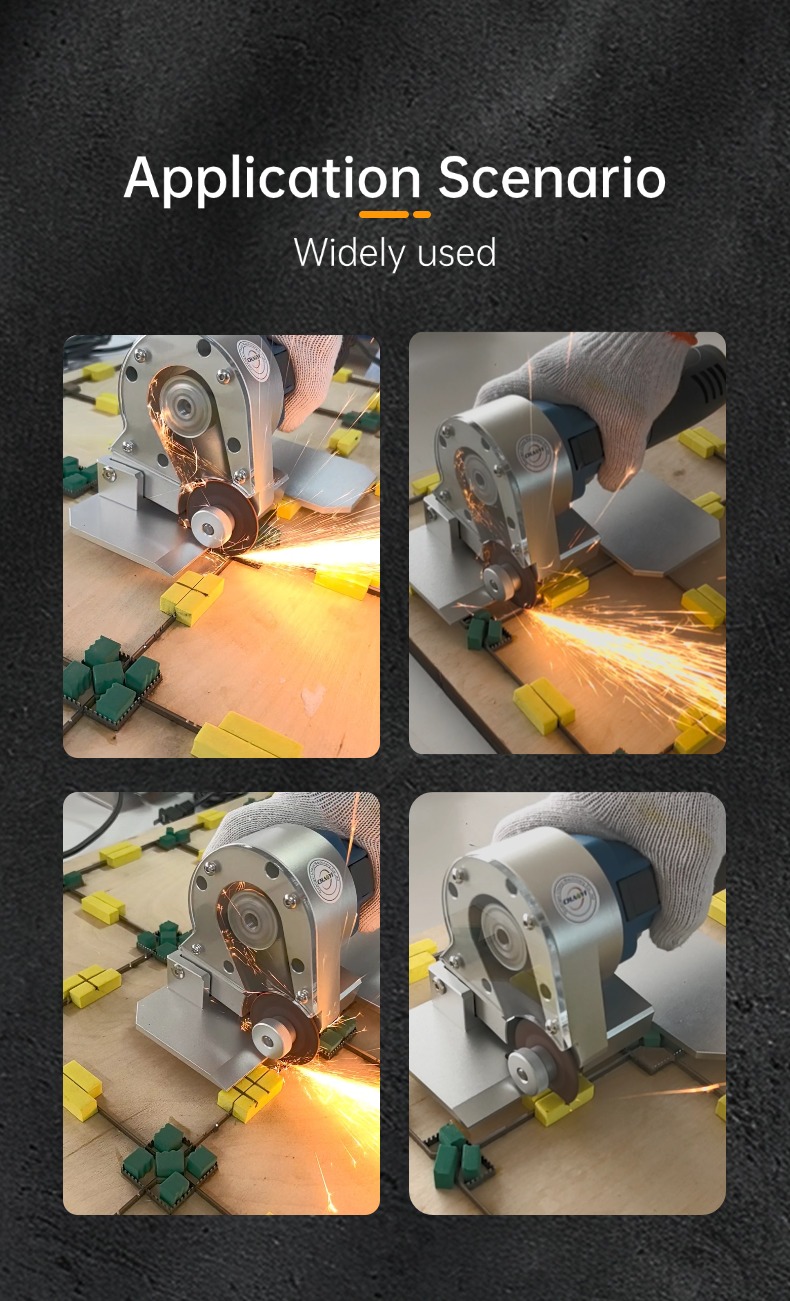

• Ergonomic & Stable Design: With compact dimensions and a net weight of 2.5 kg, the tool offers excellent maneuverability and control during operation. The integrated locating device ensures perfect alignment on cutting rules for consistent results.

• User-Friendly Operation: Features intuitive controls for motor start/stop and speed regulation, making it suitable for both experienced technicians and trained operators.
