Portable Pneumatic Nick Grinder for Cutting Dies Packaging

Products

Portable Pneumatic Nick Grinder for Cutting Dies Packaging

Type:Box cutting

Weight:0.8KG

Revolution:35000 R/ Min

Working pressure:0.6~0.8Mpa

Motor:Grinding wheel type:0.3-0.5-0.7-0.8-1.0-1.2-2.0

  • Details

Portable Pneumatic Nick Grinder for Cutting Dies Packaging


The equipment is specifically engineered to grind “nicks” of varying widths and depths in solid board or corrugated board cutting dies.

Usage:

It should be installed and utilized on an appropriate worktable or die-cutting machine within the workshop.

Operation Instructions:

To install the grinding wheel, place it between two brass sleeves on the transmission shaft, then use a spanner to secure the transmission shaft and tighten the nut.
Adjust the control screw to achieve different depths of nicks: turning the screw clockwise reduces the depth of the nick, while turning it counterclockwise increases the depth.
The depth of the nick should be determined by the cutting dies to prevent abnormal wear on the grinding wheel.
The switch at the rear of the device can regulate the motor speed and start/stop functions.
When grinding nicks, use the locating device to position the machine on top of the cutting rules, then firmly and swiftly press the grinding wheel toward the blade of the cutting rules.
If you are interested in our Handle type Pneumatic Nick Grinder For Cutting Rules, please send us your inquiry. It would be our great honor to receive your inquiry!

Specifications:

Speed: 35000 R/min
Working type: Pneumatic
Working pressure: 0.6-0.5MPA
Comes with 5pcs grinding wheels of various thicknesses: 0.3mm, 0.5mm, 0.7mm, 0.8mm, 1.0mm, 1.2mm, 2.0mm (one of each size)


Pictures Show

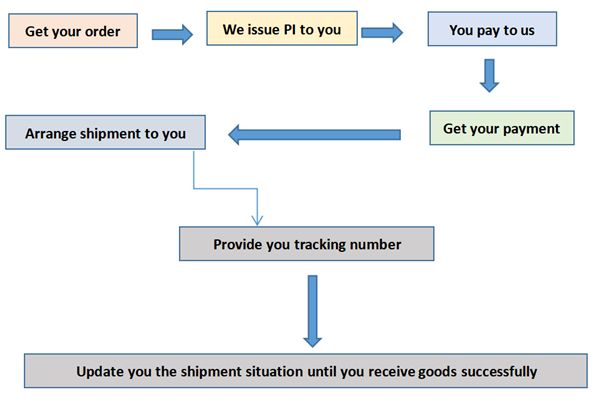

Order Process

Upon receipt of your order, we will issue a proforma invoice if necessary.

Kindly arrange the payment and provide us with the bank slip.

Once we verify your payment, we will promptly dispatch the stripper to you during business hours via FEDEX or DHL and provide you with the tracking number the following day.

We will continuously monitor the shipping progress and provide you with updates until the shipment is successfully received.

Our customer service team is available 24 hours a day, 7 days a week to provide assistance.

We will maintain regular communication with you to inquire about the machine’s usage and promptly address any issues that may arise.


Previous Product:Die-cutting machines and grinding wheels on a nick grinder

Next Product:Portable Pneumatic Die Cutting Nick Grinder
