Professional Manufacturer of Package and Printing Machine
SHENZHEN CHAOYI MACHINE CO.,LTD

Products >> Electric carton waste stripper >>

  • 1300W New Electric Carton Waste Stripper Corrugated Cardboard Stripping Machine with Double teeth 3600rpm 220V
  • 1300W New Electric Carton Waste Stripper Corrugated Cardboard Stripping Machine with Double teeth 3600rpm 220V
1300W New Electric Carton Waste Stripper Corrugated Cardboard Stripping Machine with Double teeth 3600rpm 220V 1300W New Electric Carton Waste Stripper Corrugated Cardboard Stripping Machine with Double teeth 3600rpm 220V

1300W New Electric Carton Waste Stripper Corrugated Cardboard Stripping Machine with Double teeth 3600rpm 220V

  • Product No.:HS-D90S
  • Price:negotiation
  • type:electric waste stripper
  • Weight:5.5KG
  • chain:#3 chain
  • Revolution:3600 RPM
  • Working pressure:6~8KG
  • Motor:Taiwan Brand
  • paper type:it suitable for all kinds of paper, especially for corrugating paper and cardboard etc.
  • Online Inquiry

1300W New Electric Carton Waste Stripper Corrugated Cardboard Stripping Machine with Double teeth 3600rpm 220V


TECHNICAL INFORMATION

Item Number

HS-D90S

Type

Electrical stripper

Color

Green

Revolution

3600 turns /min

Chain

#3 with 18 cogs (medium size)

Working power

1300W

Power supply

220v~250v

Net weight

5.5 KG

Minimum cutting size

5MM

Suitable paper

all kinds of paper. Efficiency will be higher for corrugating medium paper, cardboard and so on.

Gross Weight

6.5KG

Package Dimensions

490*170*240mm


HS-D90S High speed paper carton board electric waste stripper

1.For waste margin stripping of cardboard, thin corrugated paper and common corrugated paper in printing industry.

2.Manual stripping for hours, stripping machine 10 to 30 minutes to complete, stripping efficiency is improved by nearly 10 times, greatly shorten the delivery cycle.

3.No damage for bonding area while stripping, improve the efficiency.

4.Compact configuration, almost the same weight as portable polishing machine, easy to use, men and women can operate the machine after simple training.

5.Reducing the occurrence of industrial injury, and other side, Such as wrist, back, shoulder injuries and repetitive operation motion.

6.The tooth chain adopts high strength alloy steel after heat treatment process, high hardness, wear resistance, long life, and easy replacement.


HS-D90S electrical waste strippers main advantages compare to pneumatic strippers

1, Convenient. Easy to change position, no need to be fixed by air compressor position. You can use it whenever and everywhere and just need to contact the power that with 220V~250V.

2, No need to maintain it. Since it is connect to the power and there is no water vapor that may enter in the stripper.

3, Adjustable speed. There are 6 gears to adjust the speed. Easy and simple to operate with the speed you want.


HOW TO USE IT

1.Turn on the switch to work, and you can adjust the speed as you need.
2.Stack the cardboard papers which need to remove the waste part neatly and four sides in flat.
3.The four sides of the cardboard must have cutting edge. The distance of the cutting edges should be fit the cardboard stacking position. Arrange appropriate gap on the cutting edges, make sure waste part connecting with the products. So strip the waste corner must ≥ 8mm, easy to make breakpoint.
4.After the working,turn off the switch.
5.electrical waste stripper is a precision tool. Waste stripper's maintenance is more important than repairs.
We will deliver detailed instructions for use.

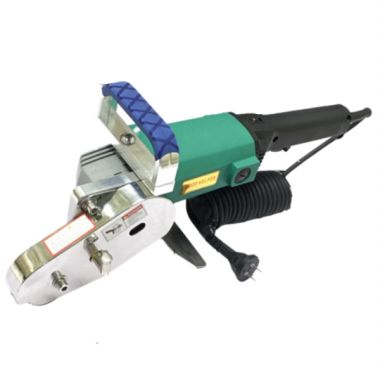

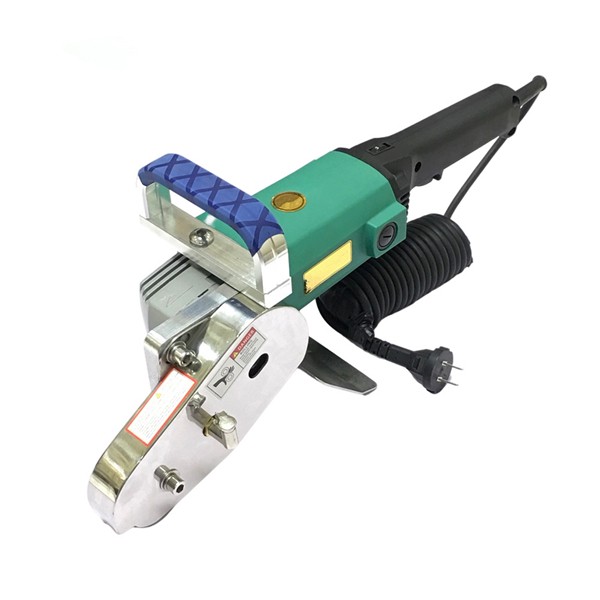

HS-90S ELECTRICAL WASTE STRIPPER PICTURES DISPLAY


ORDER LIST

ORDER PROCESS
