Product Specification

The TW-02 waste stripping machine is a user-friendly, handheld device designed to efficiently remove waste from die-cut sheets. It is suitable for various types of paper, including solid carton board, with a minimum waste depth of 5mm.

The newest version of the TW-02 features a robust motor and strong pneumatic drive for enhanced performance. When used correctly, the chain is expected to last at least six months.

Reduced Stripping Time by up to 85%

Efficiency in production time is also improved by reducing the time needed for back and side trim removal on the die cutter. Operators can strip a pallet while the next one is being processed through the die cutter.

Additional Features & Benefits:

Two-handed operation for enhanced safety
Hardened components for extended lifespan
Ultra hard chain and enclosed pneumatic system for improved safety
Reduced risk of repetitive strain injury (RSI)
Narrowest minimum gutter depth on the market at 5.0mm
Undamaged cartons leading to improved productivity

Product Features:

Utilizes a renowned pneumatic motor for high performance and security
Lightweight and portable design for exceptional convenience
Effortless and rapid waste clearance, offering higher efficiency compared to traditional manual stripping
Does not damage the bonding area during stripping, unlike the hammer knocking method
Chain made of high-strength alloy steel for increased hardness, wear resistance, and prolonged service life

Common Issues:

Tool not functioning

Chain unable to rotate, either too tight or gear stuck: Remove the cover, adjust the slider, and check for misalignment between the chain and gear.
Paper jam during operation: Cut off the air supply and agitate the chain with a tool to rotate it until the shreds come out.

Inadequate tool rotation power

Insufficient air pressure: Check and increase the air pressure as needed.
Verify that the slide switch is turned on.
Adjust the chain to the correct position if it is too tight or too loose.
If the chain is excessively worn, it needs to be replaced.

Why Choose Us

Here are some main points.

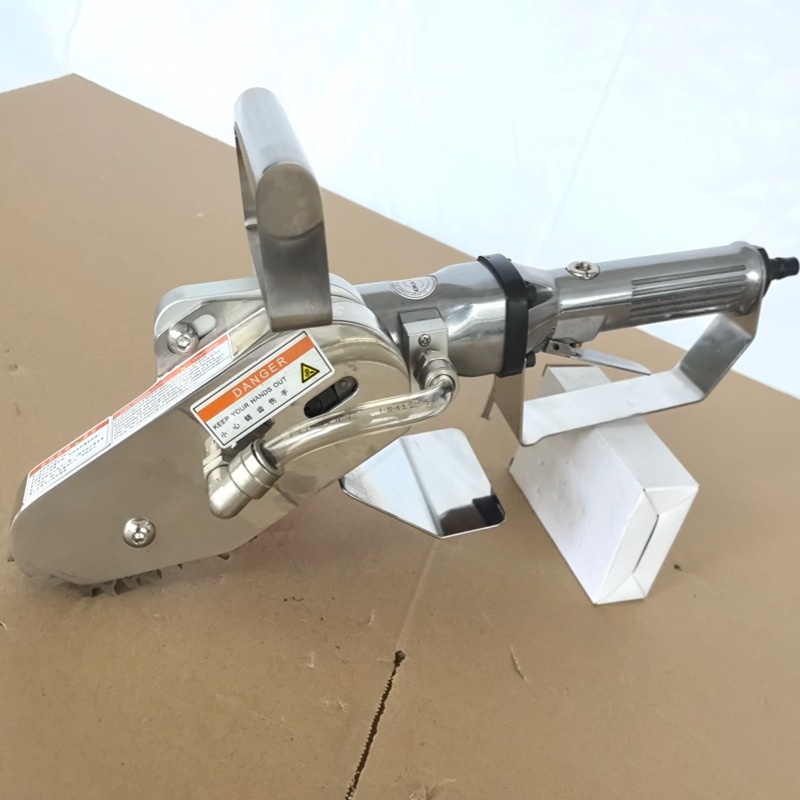

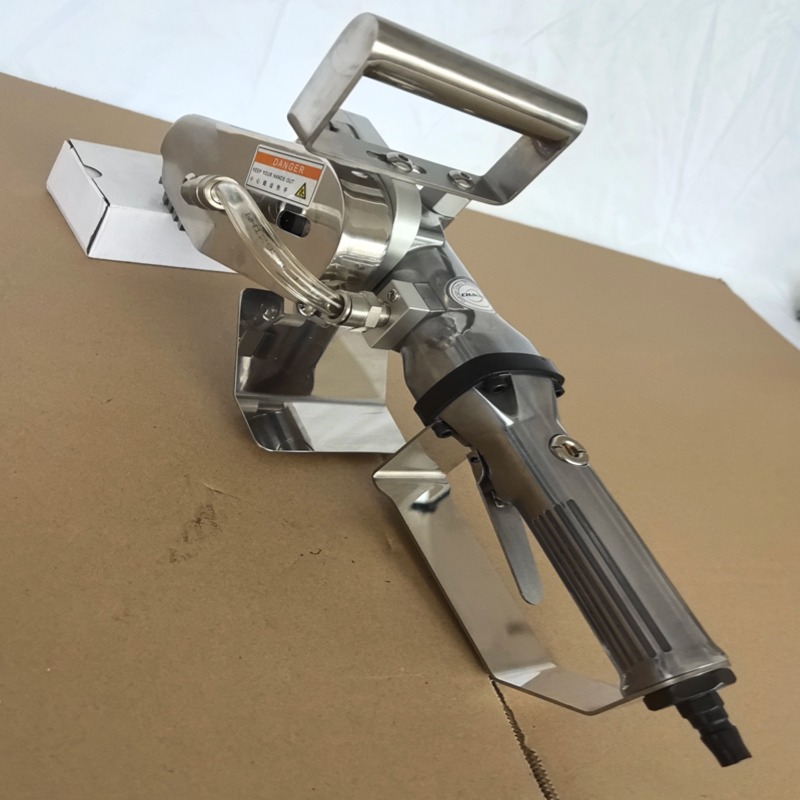

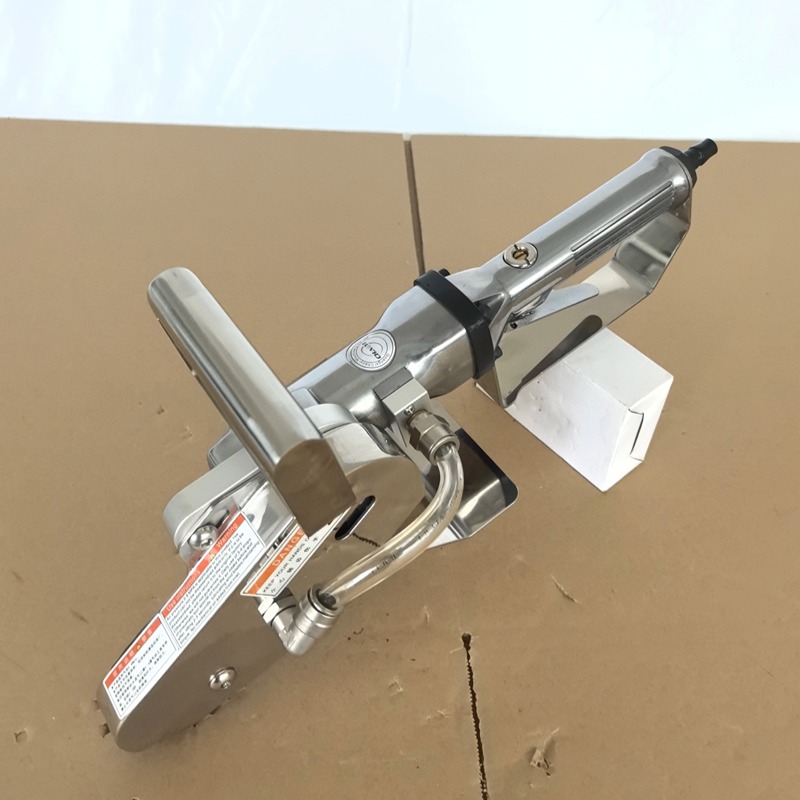

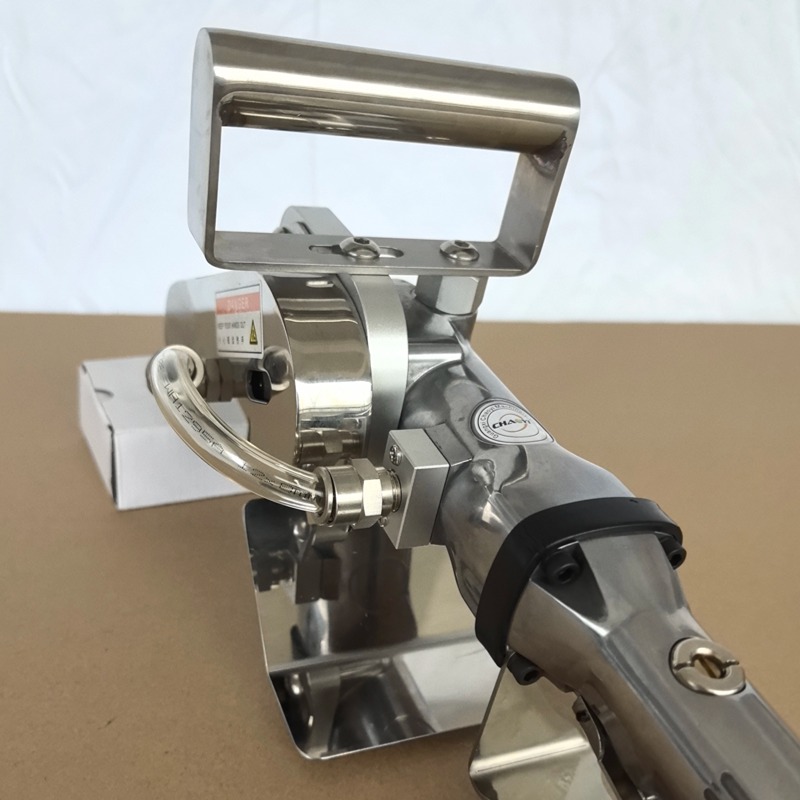

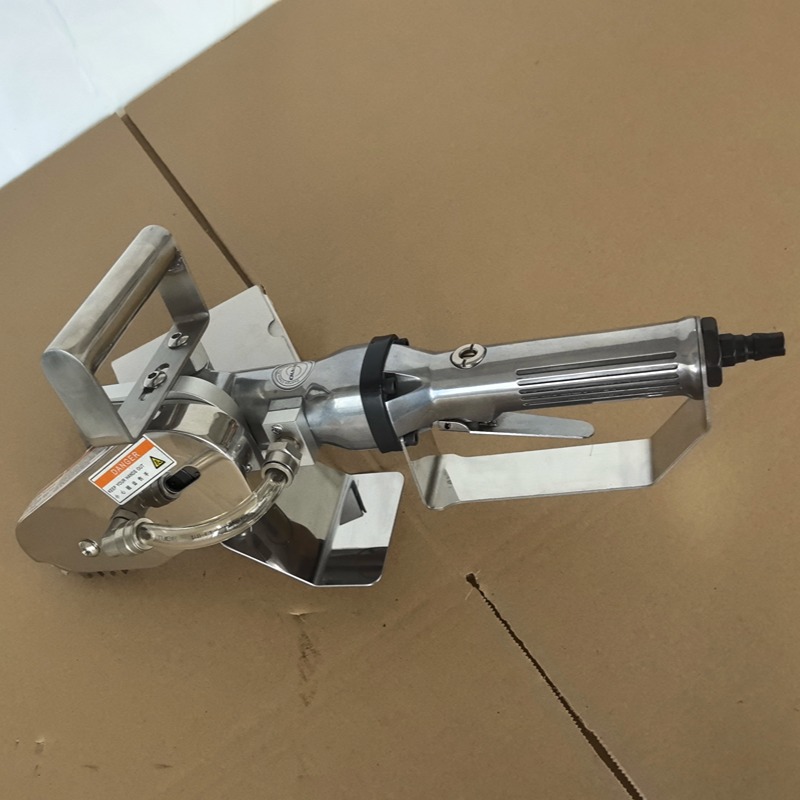

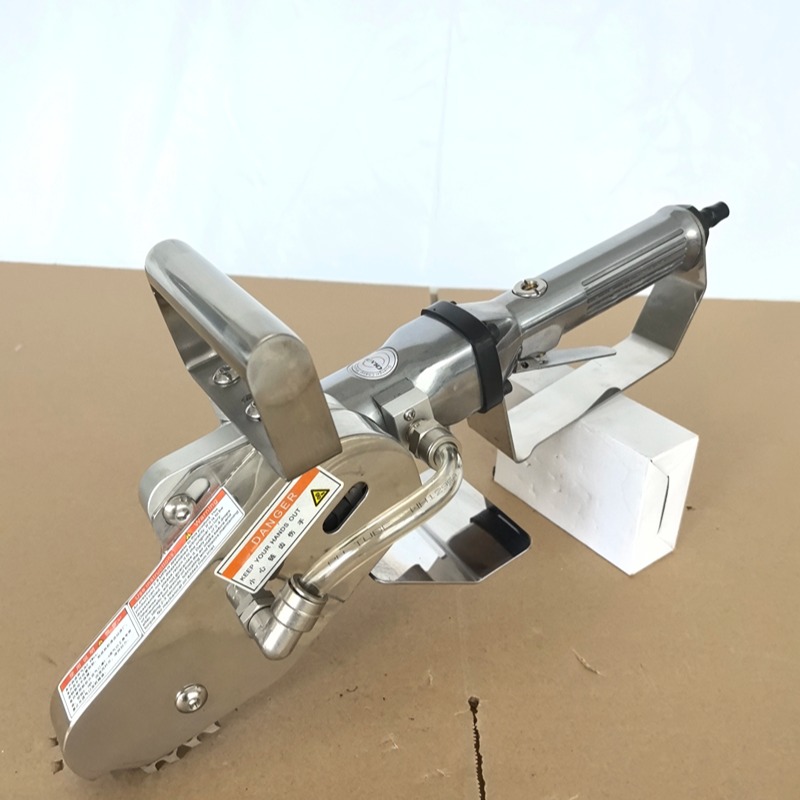

Product Show

Gentle Reminder

To ensure optimal stripping results, it is important to install stripper rules on the outer trim areas of the folding carton cutting die and use a nick to grind nicks when using the stripper. Failure to do so may affect the stripping outcome.
