Manual Cardboard waste stripper in packaging HN-09 Product description

“the new filigree“

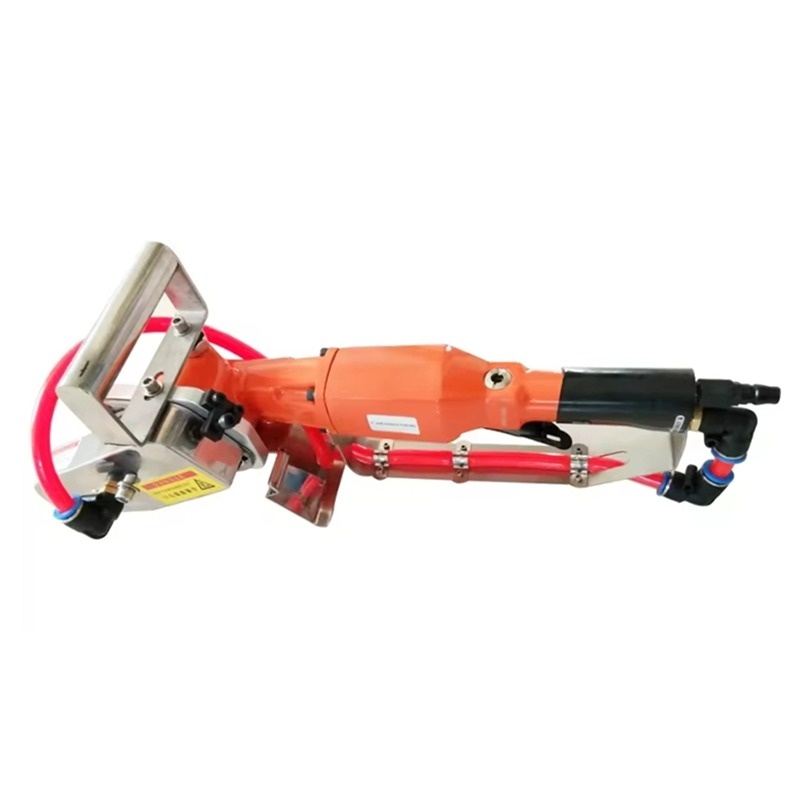

Our filigree carton-stripper is the compressed air-operated HN-08 carton-stripper. The HN-08 carton-stripper is equipped with a hardened, very narrow and filigree 5mm wide chain (Chain# 3). The width of the protective cover in this version is 15,5mm. Thanks to its HEINIU compressed air drive, the HN-08 is very robust and very low-maintenance. Our decades of experience with HEINIU compressed air motors have also convinced our customers of the very good performance and high quality of these motors.

For the HN-08 we recommend to order a lubrication unit too. (Filter with water separator, reduction valve, pressure gauge, air line lubricator, mounting bracket and screws.) It is absolute necessary to use a compressed air lubrication unit to protect the air driven motor.


HN-09 Application

The HN-09 is designed to remove the external punching waste from cardboard, microwave, corrugated cardboard, plastic corrugated cardboard and similar formats from approx. 150g/m². The AWEX-8AC carton-stripper is used wherever particularly narrow and deeper die-cutting waste needs to be removed. The HN-08 should only be used for this application because of its filigree and narrow chain. An on-site conversion from the narrow chain to the wider chain#3 chain is not possible for technical reasons.

For optimal removal, the edge of the waste must be at least 5mm wide for cardboard and microwaves and at least 20mm wide for corrugated cardboard.
The device is delivered ready for connection and with a quick-connect coupling for a hose inner diameter of 9mm. Tools for changing the chain and an operating manual (German or English) including a spare parts list are included with the device. Depending on availability, we reserve the right to deliver this device in yellow, gray or red paint.


01 Requirements for use

1. Air pressure: 0.6~0.8Mpa
Air compressor needs 4KW or 5.5HP or more
3. Production requirements for supporting die-cutting boards (very important!)
4. In order to work better with the waste stripper, the die-cutting board needs to be broken into several sections according to
the requirements, so that the stripper can quickly remove these small pieces of waste.
It is best to die-cut the external waste edges into small strips with a length of 250mm450mm. The specific length of the small
pieces is determined by the shape of the paper product, the width of the waste edges and the number of small sections. The smaller
the number of small blocks, the wider the width, the faster the waste removal speed.

02 Maintenance items

1 It is recommended to check the cleaning and maintenance tools every two months or so. Check whether the bearings, gears, chains
and other transmission parts are in good lubrication and clean. Then inject bone grease into the oil injection hole of the motor
head to make the internal gears of the motor fully lubricated. If the motor tool is used in high frequency, it is recommended that
the tool be routinely checked and lubricated every two weeks.
2. Regularly clean the air motor blades according to different usage conditions. The cleaning method is: loosen the air inlet
pipe, inject a small amount of less viscous lubricant from the air inlet, connect the air pipe, and run for 30 seconds, then
loosen the air pipe to pour out the dirty oil , And then drip a small amount of lubricating oil, you can also inject and
other bone moisturizing agents from the exhaust port.
3. If the tool is placed for a long time, it is not necessary to drip a small amount of lubricating oil from the air inlet, and
then let the tool run for a few seconds before storing the tool so that the internal parts of the tool will remain lubricated and
rust-proof

Precautions

(1) After using every day, spray WD-40 anti-rust oil on the chain to clean the chain, use a dust blow gun to blow off the paper
dust, and then add a little lubricating oil. Careful maintenance can extend the life of the chain (very important ).
(2) Handling of jammed paper: Disconnect the air circuit (very important). If the chain cannot be turned, loosen the protective
shell screws and take out each screw, turn the rail to remove the jammed paper and install the screws to continue using.
(3) The tension of the chain must be checked frequently, and the tension should be adjusted when necessary. After adjustment, if
the longest section of the chain sags about 1mm in a horizontal state, it indicates that the tension adjustment is basically
correct. A chain that is too loose will damage each other with the collision surface of the safety shield during rotation.
