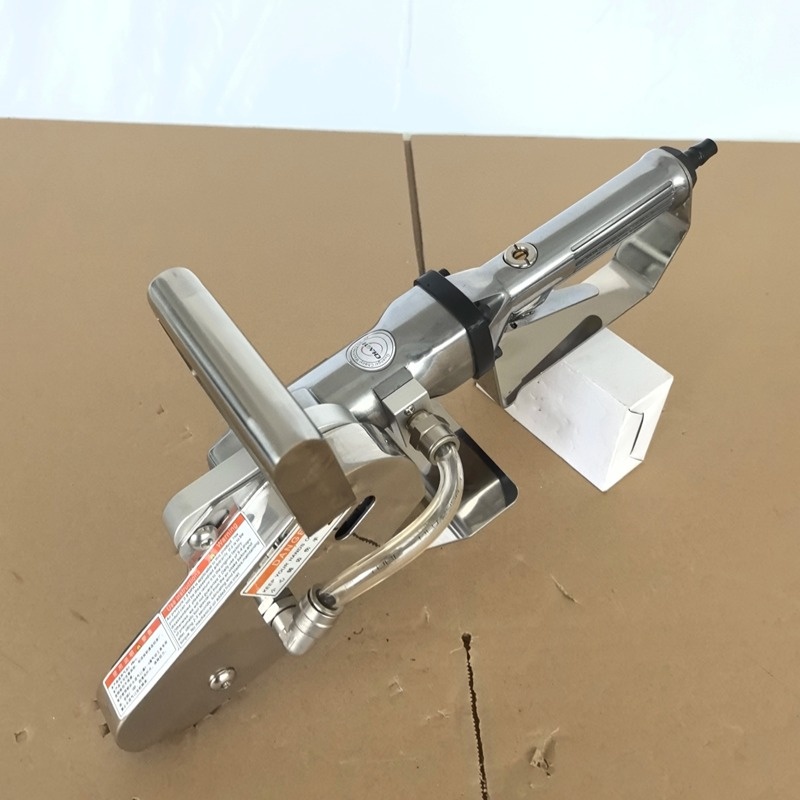

Air Paper Waste Stripping Machine Carton Waste Stripper

Product's Working Video

Product Specification

Item Number	HS-2836S
Type	Pneumatic stripper
Color	Black and Silver (you could choose the color you want )
Revolution	4500 turns /min
Chain	#3 with 18 cogs (medium size)
Air consumption	0.4㎡/min
Working pressure	6~8 KG
Net weight	3.5 KG
Minimum cutting size	5MM
Suitable paper	all kinds of paper. Efficiency will be higher for corrugating medium paper/paperboard
Gross Weight	6.5KG

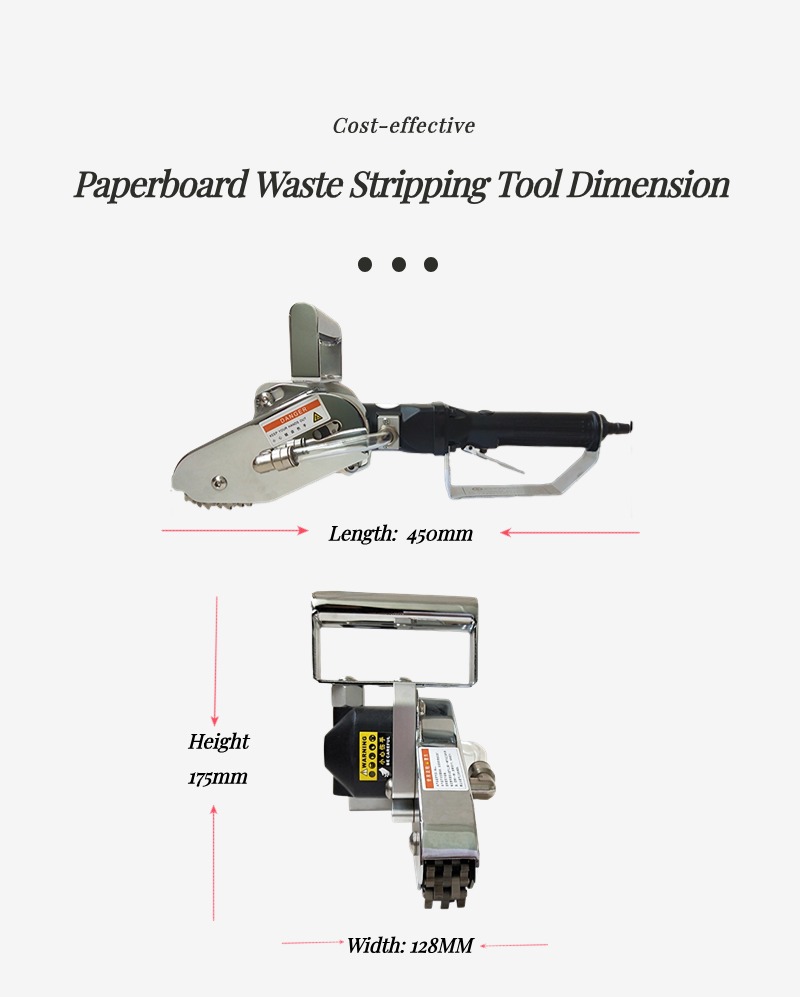

Package Dimensions	490*170*240mm

HS-2836S waste stripping machine is an easy to use, hand held stripping device for removing waste from die-cut sheets. Suitable for all kinds of paper, such as both solid carton board. The minimum waste depth is 5mm.

The latest generation of the HS-2836S is manufactured with a heavy duty motor and powerful pneumatic drive. The chain should last a minimum of six months providing the stripper is used correctly.

Stripping Time Reduced by up to 85%

Production time can also be saved on setting back and side trim removal on die cutter. The operator can strip a pallet while the next one is running through the die cutter.

Additional Features & Benefits:

Two-handed operation for safety

Hardened parts for longer life

Ultra hard chain and enclosed pneumatic for improved safety

Reduced risk of RSI

5.0mm minimum gutter depth - narrowest on the market

Undamaged cartons resulting in improved productivity

Product Feature

-- Famous pneumatic motor with high performance and security;

-- Lightweight portable design, it is very super convenient to use;

-- Easy and quick clear waste, high efficiency than the traditional human stripping;

--Compared with the hammer knock the waste way, don't damage bonding area when stripping;

--Chain adopt high strength alloy steel higher hardness, wear resistance, long service life.

Common Problems

--Tool does not work

1.Chain can not rotate, too tight or gear stuck, remove the cover, adjust the slider, check whether the chain and the gear is misaligned

2.When the machine is working. Paper jam in gear, cut off the air supply, and agitate the chain with a tool to rotate it until the shreds come out.

--Tool rotation powerless

1.Air pressure is not enough, check the air pressure to increase the pressure

2.Check whether the slide switch is on

3.The chain is too tight/too loose, try adjusting the chain to the right position

4.Chain excessive wear, the chain needs to be replaced

Why Choose Us

Here are some main points.

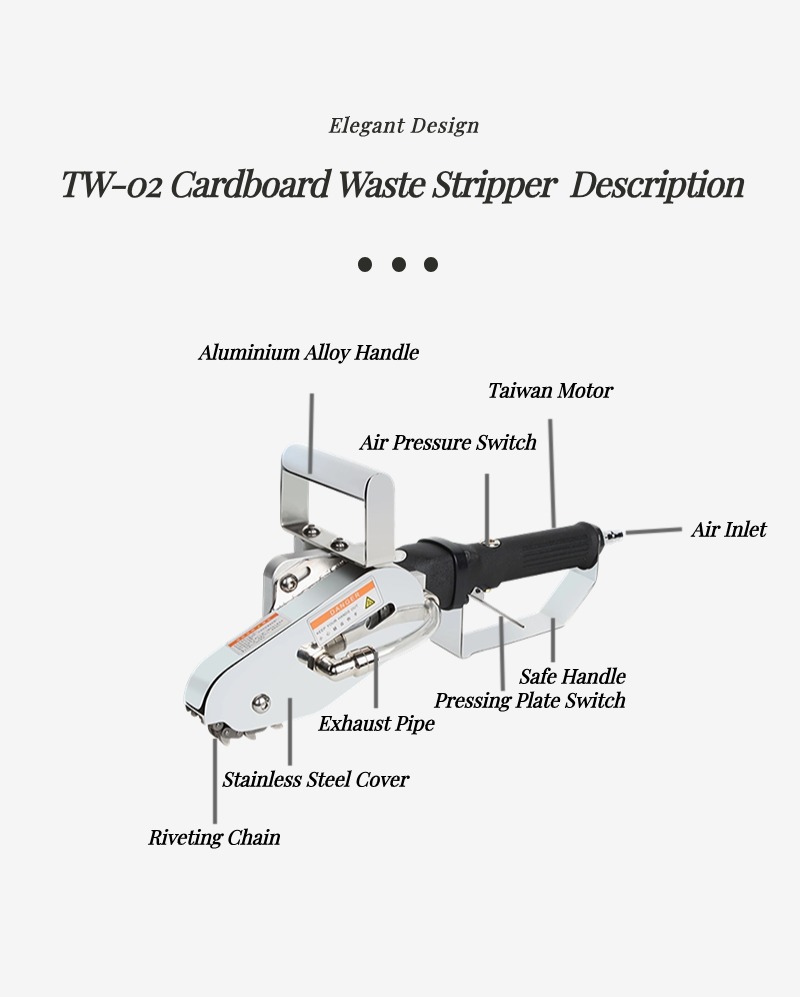

Chain	Riveting Chain	more firmer and not hard to break.
Metal Cover	Stainless Steel Cover	it is easy to extremely hot and easy to dissipate heat, which can protect stripper by itself
Metal Handle	Stainless Steel Handle	elegant and is high quality.
Firm structure	Three points fixation	More firmer and more stable
Inside components	Hard Coating	Longer lifetime and high quality
Motor	Famous brand	High accuracy, stability, and good quality

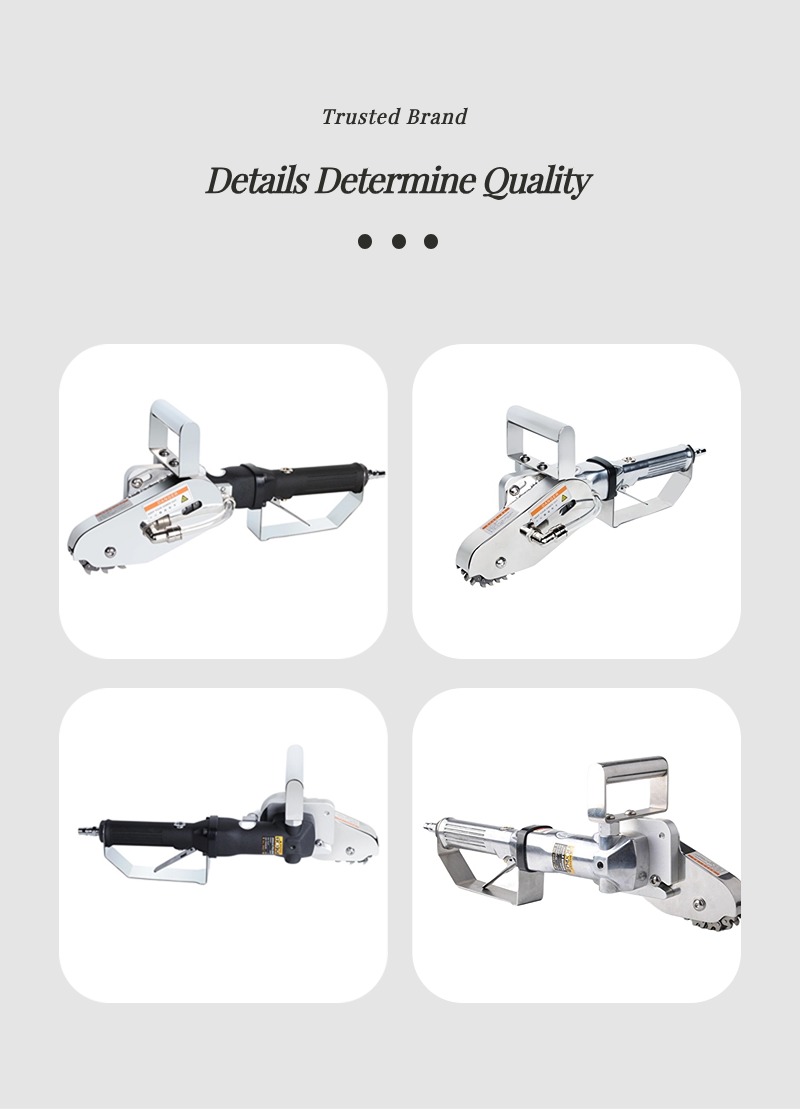

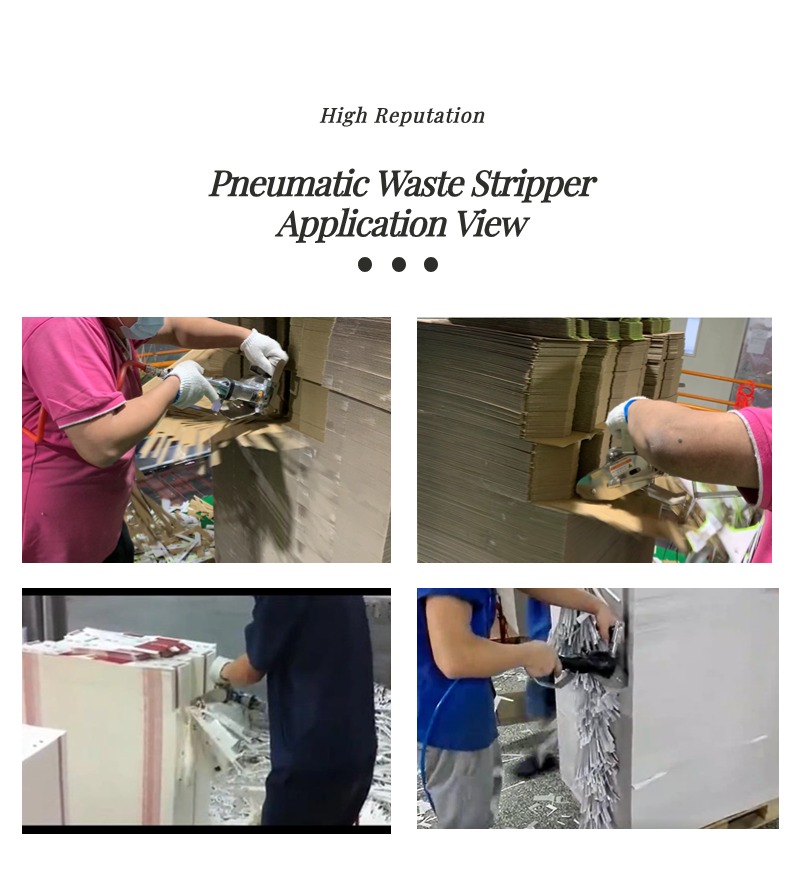

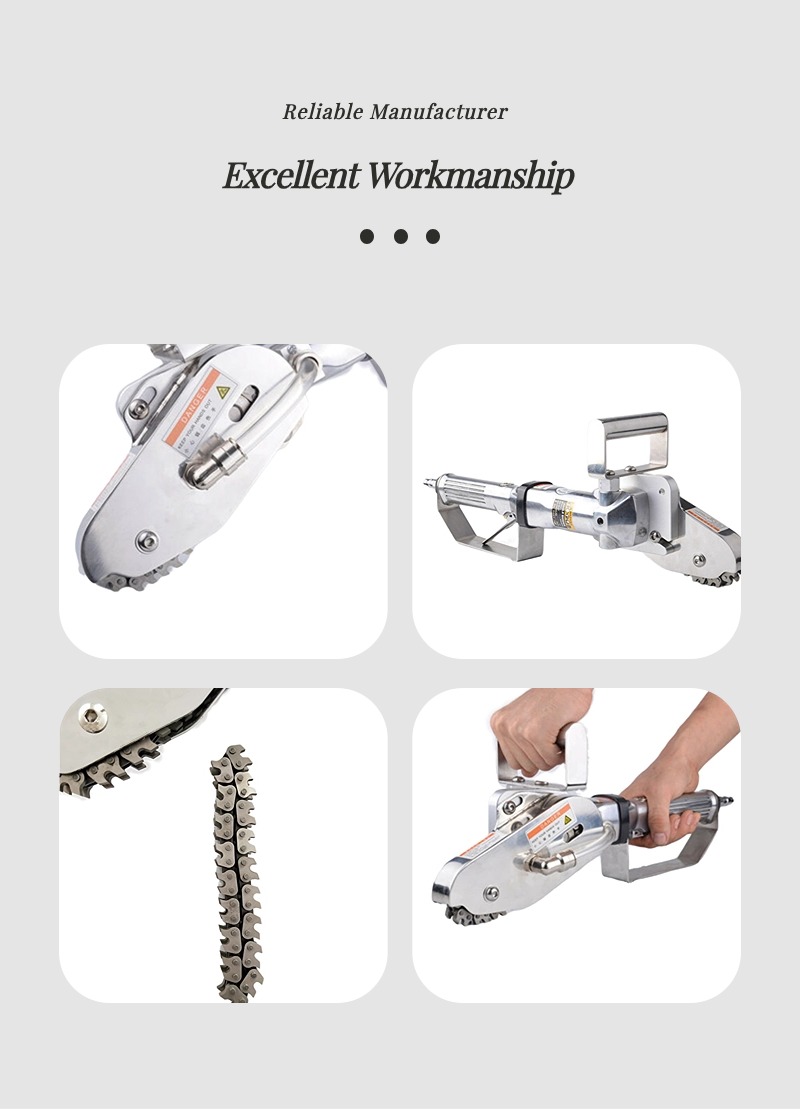

Product Show

Order List

Warm Reminder

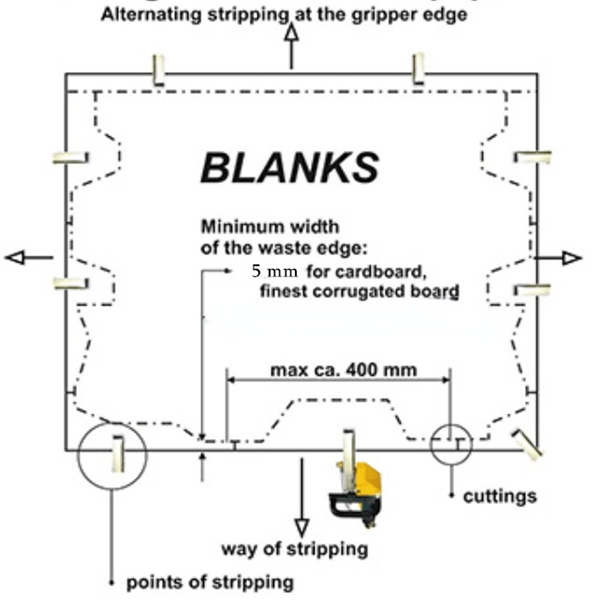

When using the stripper, the outside trim areas of folding carton cutting die must be installed with stripper rules and use Nick to grind nicks. Otherwise, the stripping result will be affected.

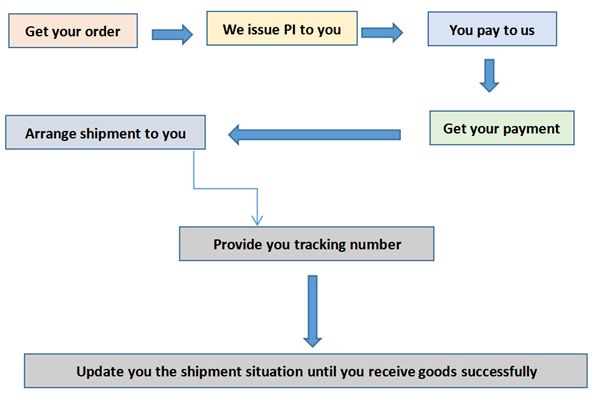

Order Steps
