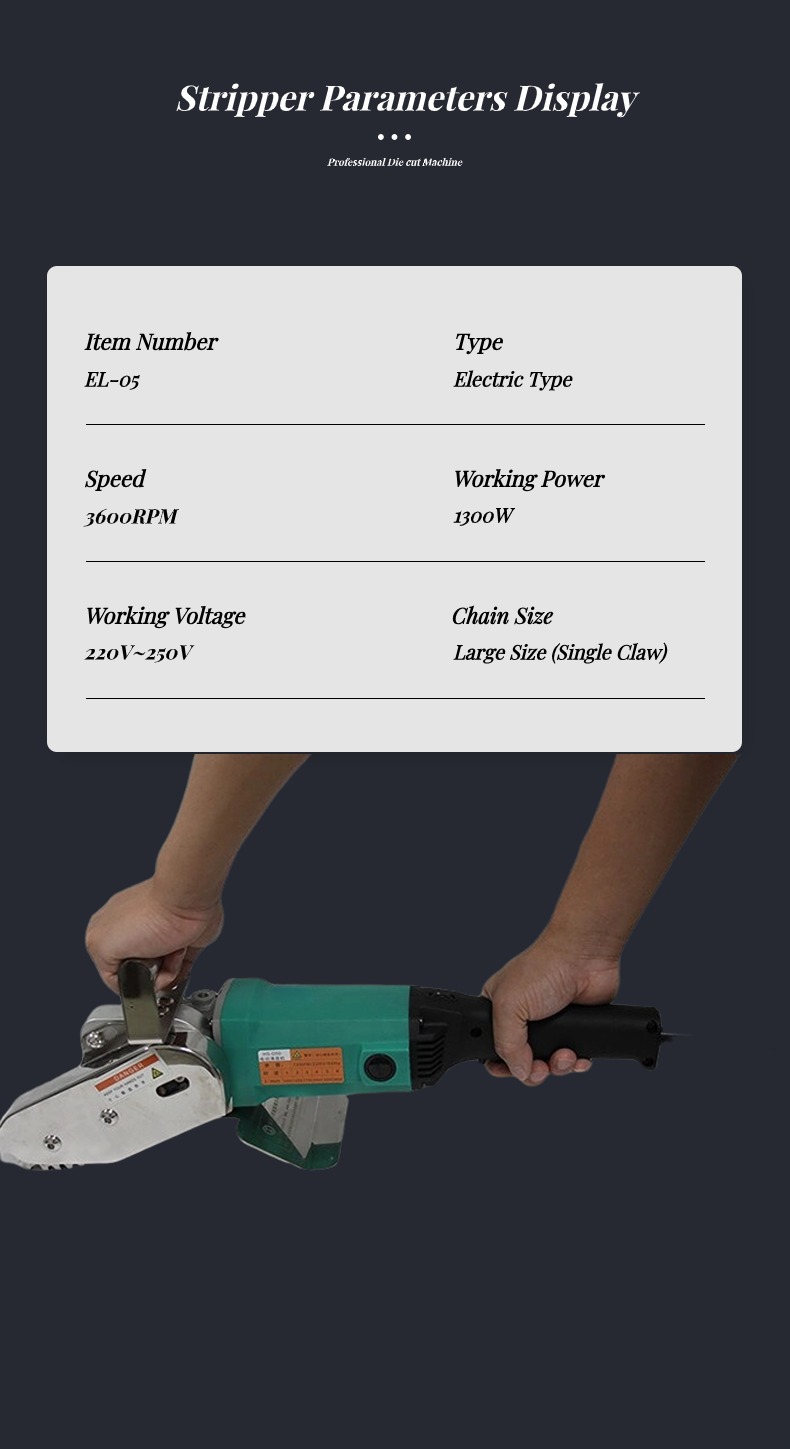

Technical Information

Item Number	EL-05
Type	Electrical stripper
Color	GREEN
Revolution	3600 turns /min
Chain	#3 with 18 cogs (medium size)
Working power	1300W
Power supply	220v~250v
Net weight	5.5 KG
Minimum cutting size	5MM
Suitable paper	all kinds of paper. Efficiency will be higher for corrugating medium paper/paperboard
Gross Weight	6.5KG
Package Dimensions	490*170*240mm

Application

---The waste stripper is suitable for waste margin stripping of cardboard, thin corrugated paper and common corrugated paper in printing industry.

---Range for the paper is 150GSM-1000GSM cardboard, single and double corrugated paper, double laminated corrugated paper.

Product Feature

---High speed rotating studded chain strips the sheets exterior trim.

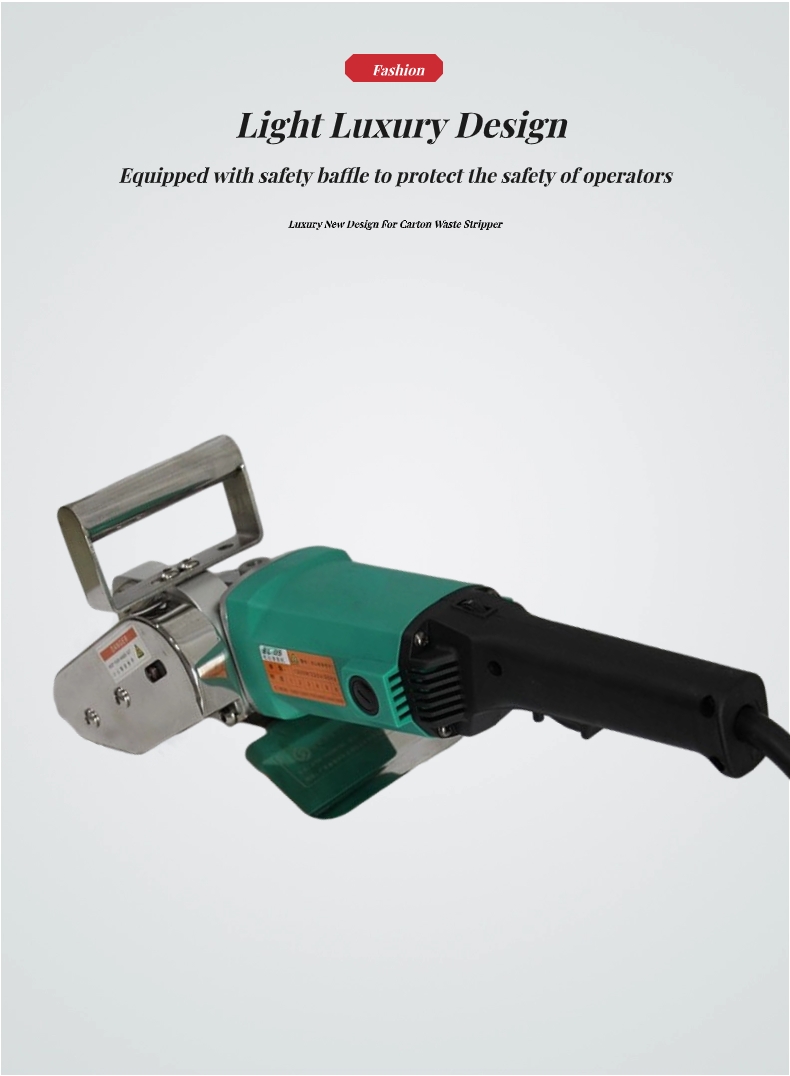

---Cover protect device prevents damage to the sheets and arrange the sheets in regular. Ensure the safety for operator as well.

---Apply pneumatic motor to drives the chain with high speed to substitute for the manual.

---Removed the stack of 400 sheets high in one second, performing instant stripping result.

---Lower the personal expense and time waste substantially. Ensure the carton quality and stability.

---Durable chain design with high hardness, strength and toughness.

---Portable design economize on labor expend and easy to operate.

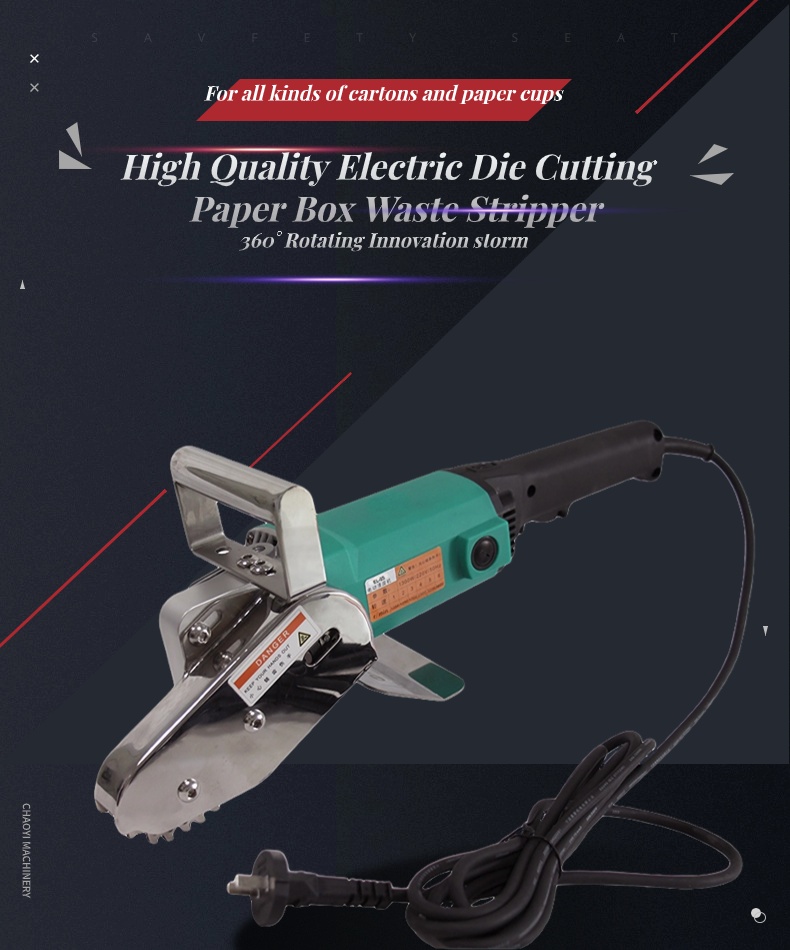

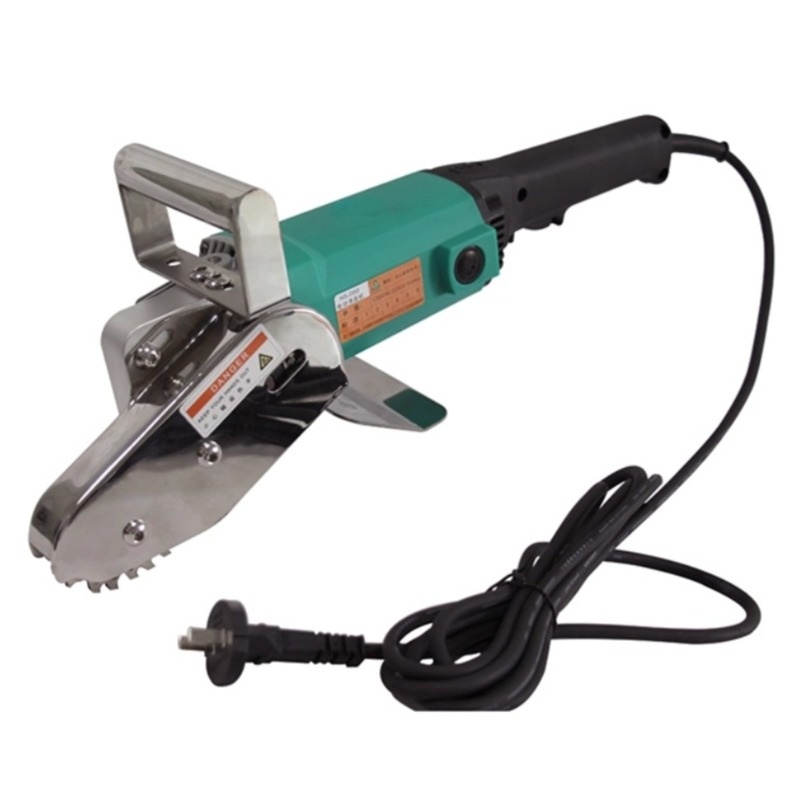

EL-05 Paper box waste stripping trim tool die cut waste stripper

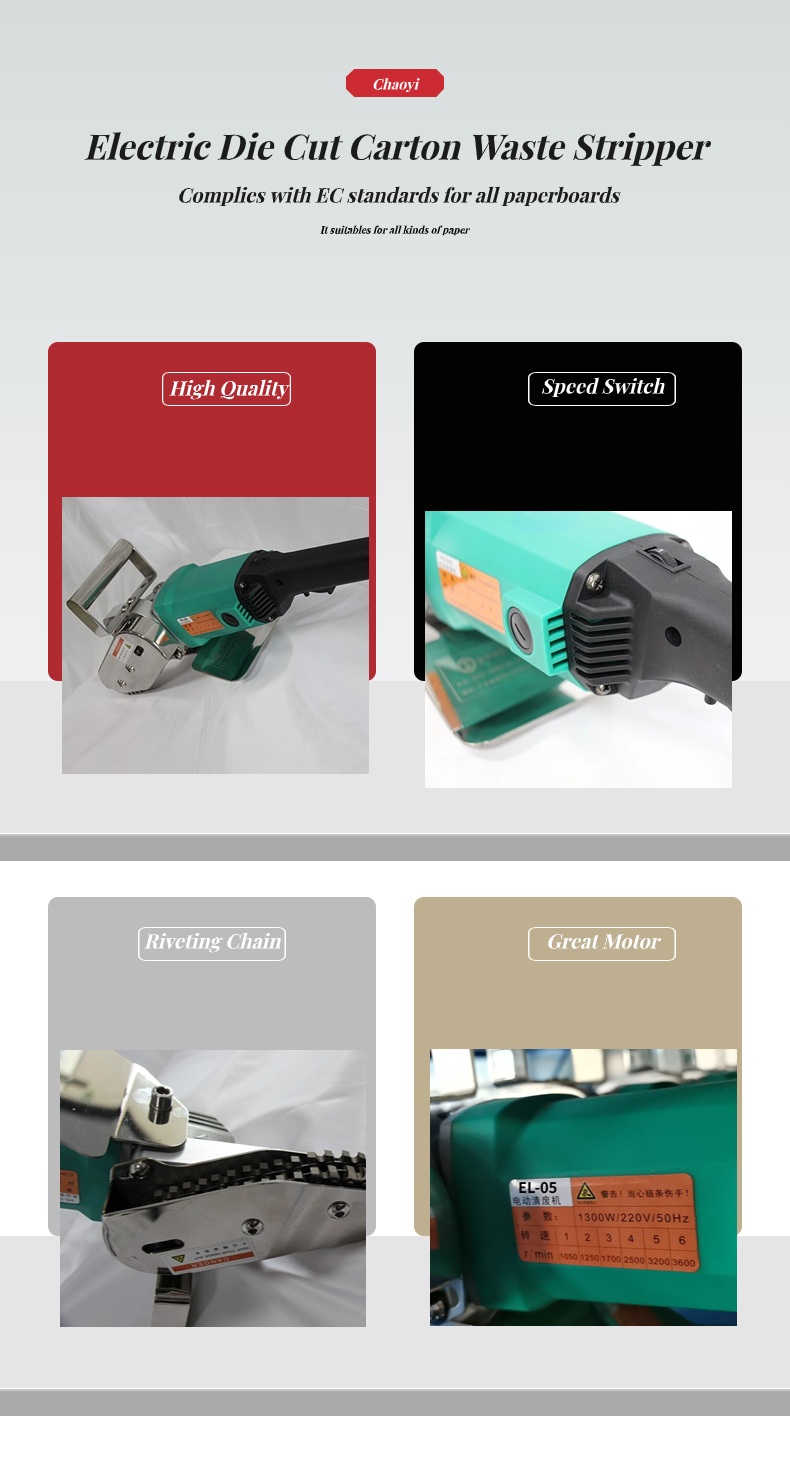

1. Taiwan famous brand motor with high performance and security
2. Lightweight portable design, it is very convenient to use
3. Easy and quick clear waste, high efficiency than the traditional human stripping
4. Compared with the hammer knock the waste way, don't damage bonding area when stripping
5. Chain adopt high strength alloy steel higher hardness, wear resistance, long service life

Comparison between EL-05 and traditional tool to remove unwanted waste

EL-05 electrical waste stripper’s main advantages compare to pneumatic strippers

1, Convenient. Easy to change position, no need to be fixed by air compressor position. You can use it whenever and everywhere and just need to contact the power that with 220V~250V.

2, No need to maintain it. Since it is connect to the power and there is no water vapor that may enter in the stripper.

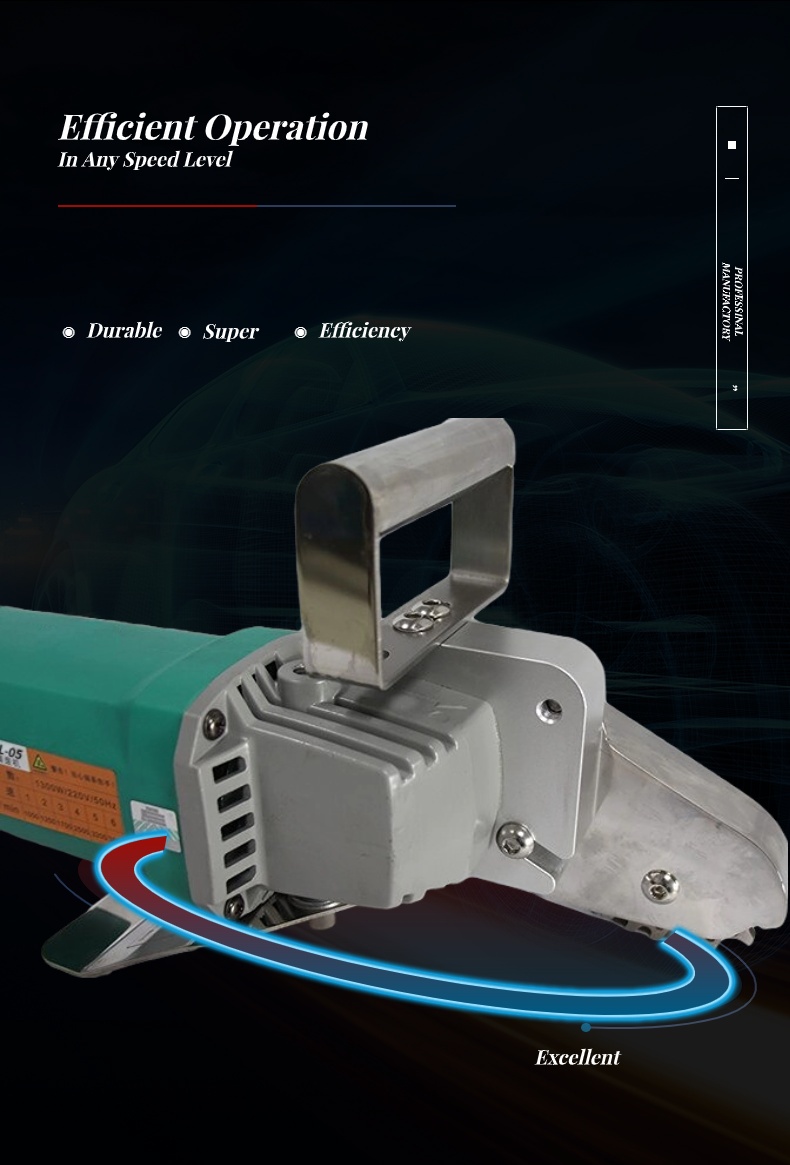

3, Adjustable speed. There are 6 gears to adjust the speed. Easy and simple to operate with the speed you want.

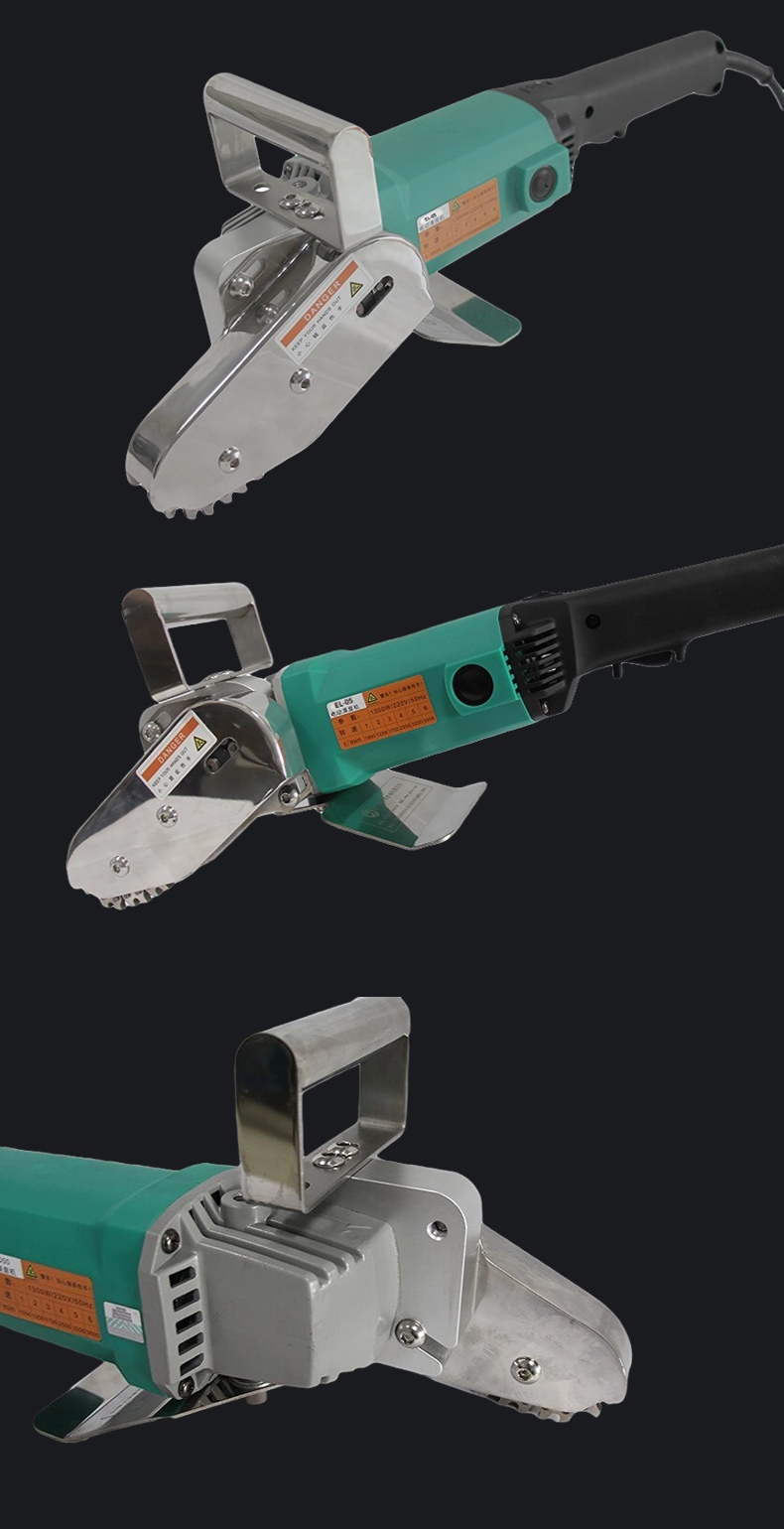

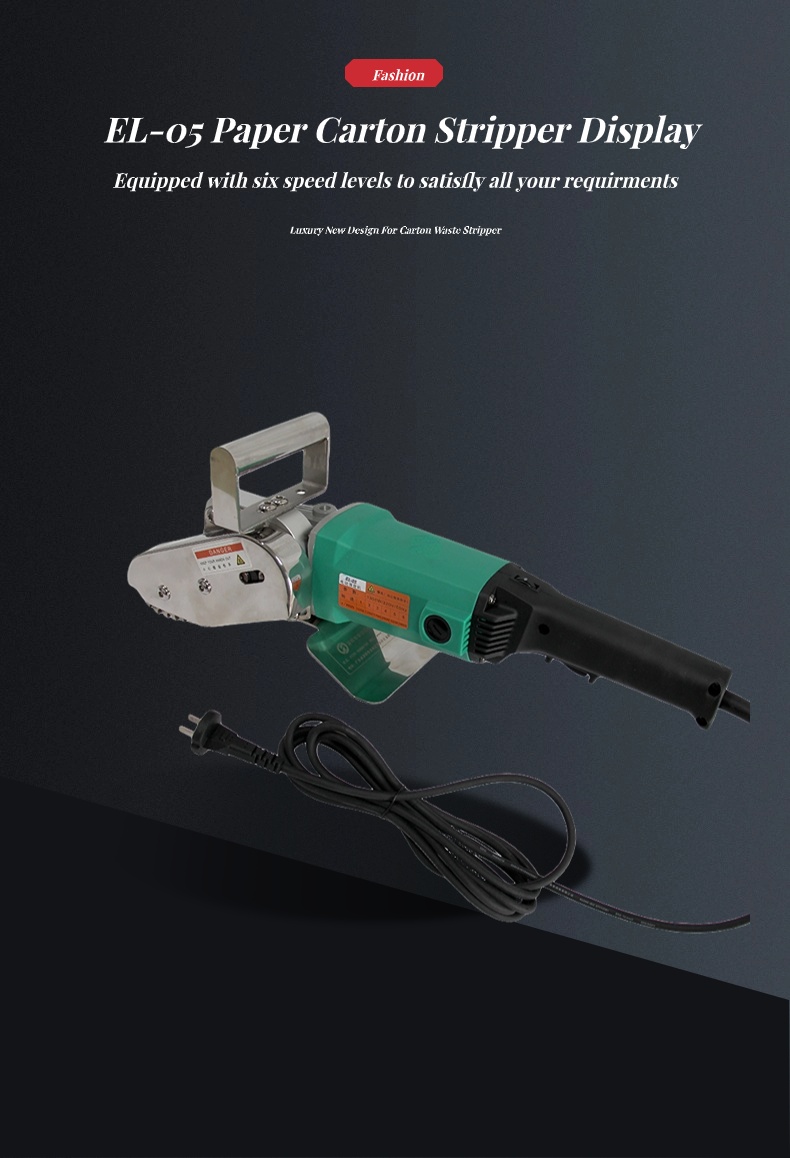

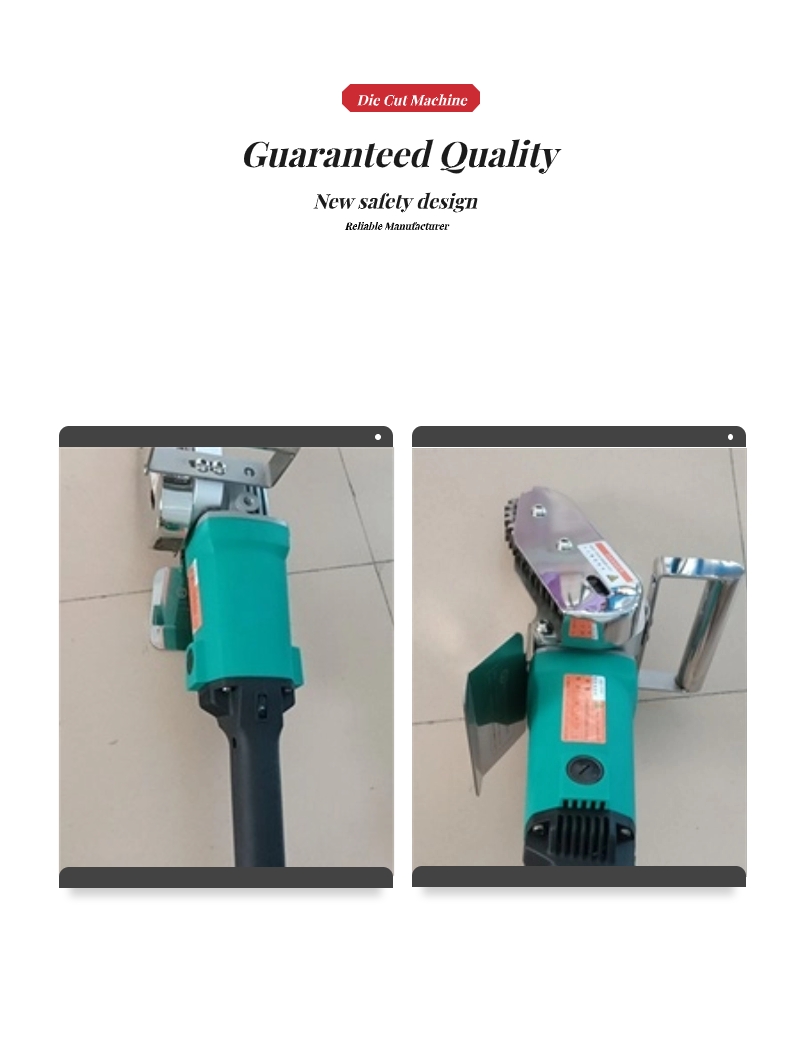

EL-05  Picture Show

Requirements for using our technology

Prerequisite for using our technology is that the outside trim must be cut into trim sections. Except from this is the clutch edge. This will be stripped out reciprocally, on the left and right side. Please see the below principle picture for waste segments.
