Inner Hole Debris Removal and Stripping Machine

Technical Information

**Pneumatic Inner Hole Waste Stripping Machine**

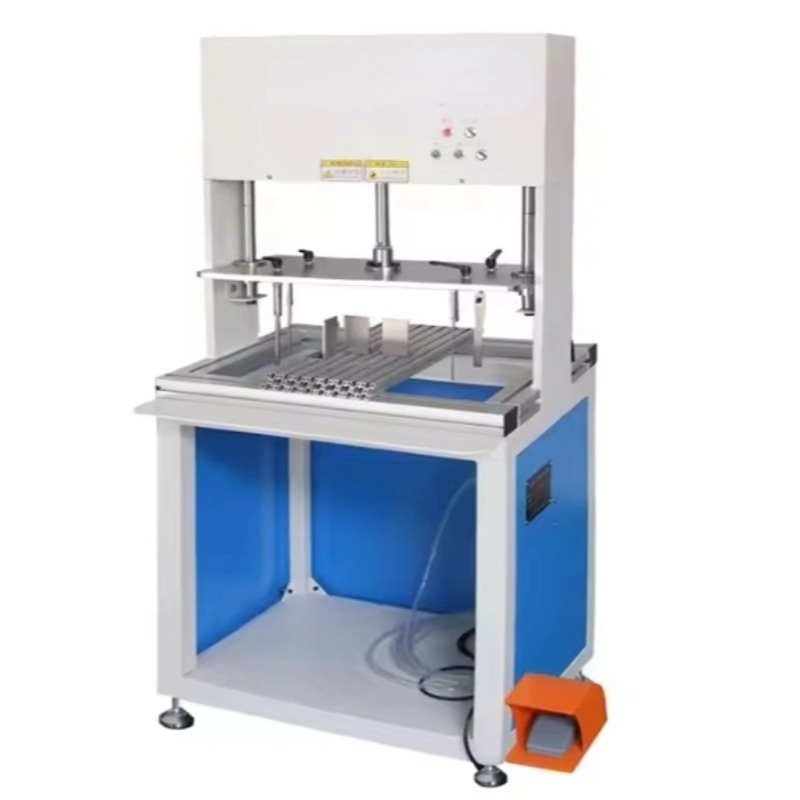

The CY-580 is a pneumatic waste stripping machine designed for use in color printing and packaging industries. It efficiently removes waste material from paper, corrugated cardboard, plastic, and other substrates after die-cutting various shapes of holes, such as round, square, rectangular, and irregular. It is ideal for hangtags, color boxes, and cartons, capable of cleaning one or multiple holes simultaneously.

**Key Features:**

1. **Precision & Easy Operation**
   The machine delivers high precision and is simple to operate, ensuring consistent performance.

2. **Customizable Molds**
   The machine supports customizable molds and punch dies, allowing multiple molds to be installed at once, enabling simultaneous waste removal from multiple holes, improving efficiency.

3. **Gentle Pressure Application**
   The punching die applies pressure without damaging the product, preserving product integrity.

4. **Built-In Cleaning Box**
   The machine includes an integrated cleaning box for convenient waste collection.

**Product Description:**

The CY-580 is equipped with a pneumatic stripping mechanism that is capable of removing excess material from a variety of substrates, including paper, cardboard, foil, and plastic. The machine’s design includes precise vertical guidance for the stripping plate and movable stops for accurate material positioning.

Primarily used in the die-cutting process of color boxes and cartons, it removes waste paper from holes such as round, square, or irregular cuts. Its key components are designed for reliable and accurate operation, and the adjustable locking plate can hold multiple molds at once, allowing for the efficient clearance of several waste holes in a single operation.

**Benefits:**

- **Labor & Cost Savings**:
   The CY-580 reduces manual labor and waste removal costs, enhancing overall productivity.

- **Increased Production Efficiency**:
   The machine boosts production efficiency by 30%-50%, streamlining the removal of multiple holes at once compared to manual methods.

- **Improved Product Quality**:
   Automated waste removal minimizes product loss and ensures higher-quality output.

- **Compact & User-Friendly**:
   With its simple design, the CY-580 is easy to set up and requires minimal training, making it suitable for both male and female operators.

**Additional Features:**

- **Safety Mechanisms**:
   Foot pedal activation with safety light barriers ensures safe operation, preventing accidents.

- **User-Friendly Control**:
   All machine functions are controlled via a central panel, with a visual indicator to show the device’s status.

- **Quick Setup & Changeover**:
   The machine’s design allows for quick adjustments, making it ideal for smaller tasks and rapid production changes.

- **Efficient Waste Disposal**:
   A convenient waste container ensures easy disposal of removed material, keeping the workspace clean and organized.

CY-580 Photos Show

Why choose us?

Infrared Safety Detection Sensor
The sensor prevents the machine from pressing down if the hand is not removed from the working desk, ensuring production safety.

Large Size Double Magnetic Ring Cylinder
The adoption of the 125-type cylinder ensures stable machine operation and smoother waste paper removal.

Foot Switch
The high-grade foot switch enables automatic waste cleaning, featuring a metal anti-misstep housing.

Additional Working Desk
Expanding the material preparation table provides space to set aside the product, increasing the product drag and drop length for more convenient waste clearance.

CY-580 Advantages

Minimize manual waste removal.
Reduce labor costs associated with product damage.
Achieve 40%-60% higher production efficiency.
Higher efficiency for products with multiple holes, as it can be completed in one go, unlike manual waste stripping. Special molds and needles are available upon request.
Compact design, user-friendly operation, suitable for both male and female operators after basic training.
