Paper Carton Electric Waste Stripper Corrugated Remover

  • Product No.:HS-D60
  • Price:negotiation
  • type:electric carton waste stripper
  • Weight:5.5KG
  • chain:2#chain
  • Revolution:3800 RPM
  • Working pressure:6~8KG
  • Motor:High grade pure copper motor
  • paper type:corrugating medium paper and gray paperboard
  • Online Inquiry

High Speed Paper Carton Board Electric Waste Stripper 3800 RPM Corrugated Paper Removal Tool


Product's Working Video


TECHNICAL INFORMATION

Item Number

HS-D60

Type

Electrical stripper

Color

Blue

Revolution

3800 turns /min

Chain

#2 with 18 cogs (large size)

Working power

1400W

Power supply

220v~250v

Net weight

5.5 KG

Minimum cutting size

5MM

Suitable paper

all kinds of paper. Efficiency will be higher for corrugating medium paper/paperboard

Gross Weight

6.5KG

Package Dimensions

490*170*240mm



HS-D60
High speed paper carton board electric waste stripper

1.For waste margin stripping of cardboard, thin corrugated paper and common corrugated paper in printing industry.

2.Manual stripping for hours, stripping machine 10 to 30 minutes to complete, stripping efficiency is improved by nearly 10 times, greatly shorten the delivery cycle.

3.No damage for bonding area while stripping, improve the efficiency.

4.Compact configuration, almost the same weight as portable polishing machine, easy to use, men and women can operate the machine after simple training.

5.Reducing the occurrence of industrial injury, and other side, Such as wrist, back, shoulder injuries and repetitive operation motion.

6.The tooth chain adopts high strength alloy steel after heat treatment process, high hardness, wear resistance, long life, and easy replacement.



HS-D60 electrical waste stripper
s main advantages compare to pneumatic strippers

1, Convenient. Easy to change position, no need to be fixed by air compressor position. You can use it whenever and everywhere and just need to contact the power that with 220V~250V.

2, No need to maintain it. Since it is connect to the power and there is no water vapor that may enter in the stripper.

3, Adjustable speed. There are 6 gears to adjust the speed. Easy and simple to operate with the speed you want.



HOW TO USE IT

1.Turn on the switch to work, and you can adjust the speed as you need.
2.Stack the cardboard papers which need to remove the waste part neatly and four sides in flat.
3.The four sides of the cardboard must have cutting edge. The distance of the cutting edges should be fit the cardboard stacking position. Arrange appropriate gap on the cutting edges, make sure waste part connecting with the products. So strip the waste corner must ≥ 8mm, easy to make breakpoint.
4.After the working,turn off the switch.
5.electrical waste stripper is a precision tool. Waste stripper's maintenance is more important than repairs.
We will deliver detailed instructions for use.

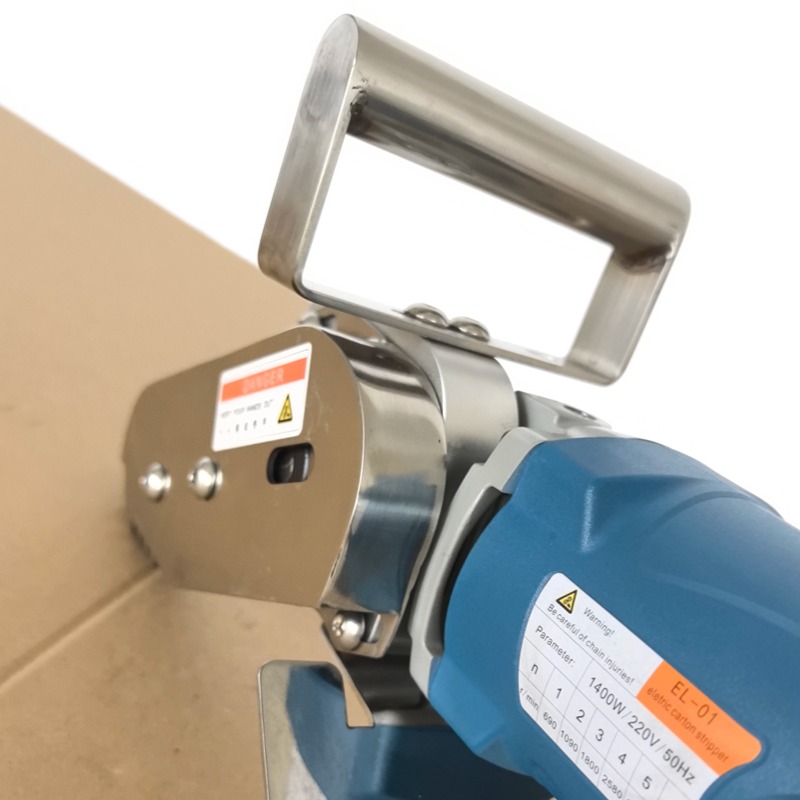

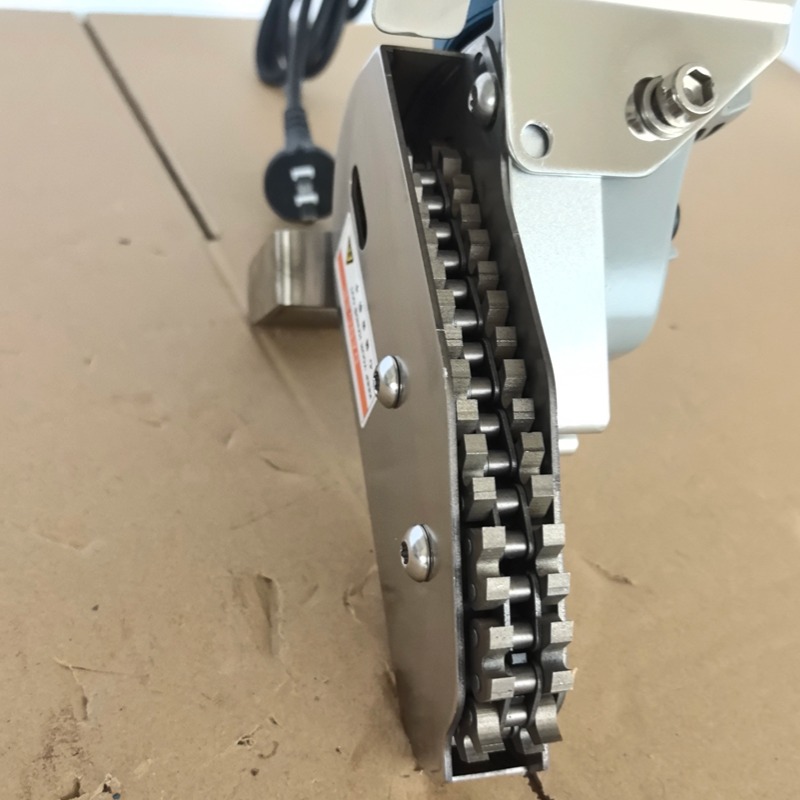

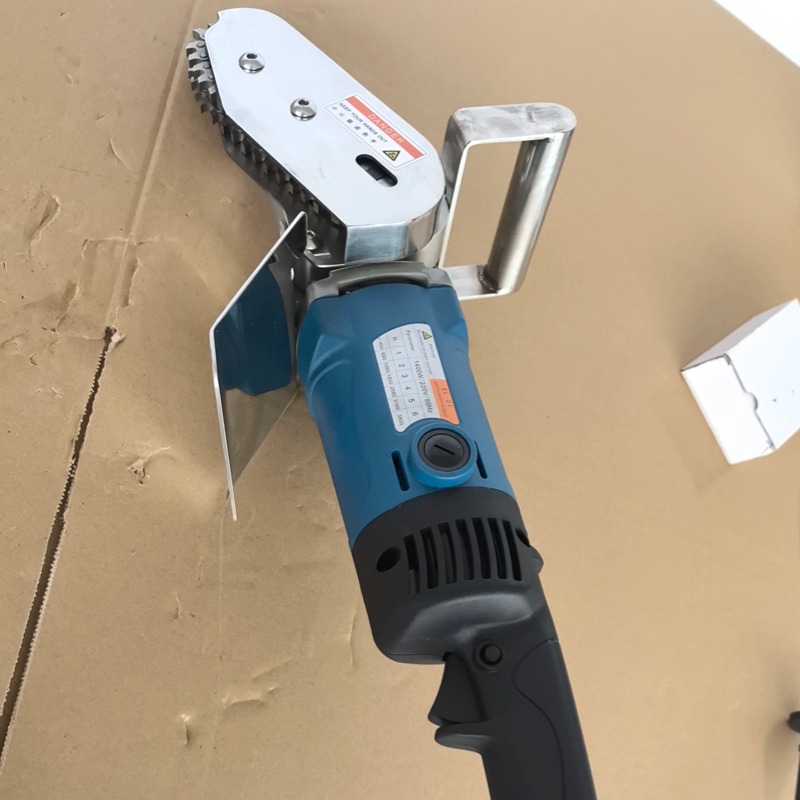

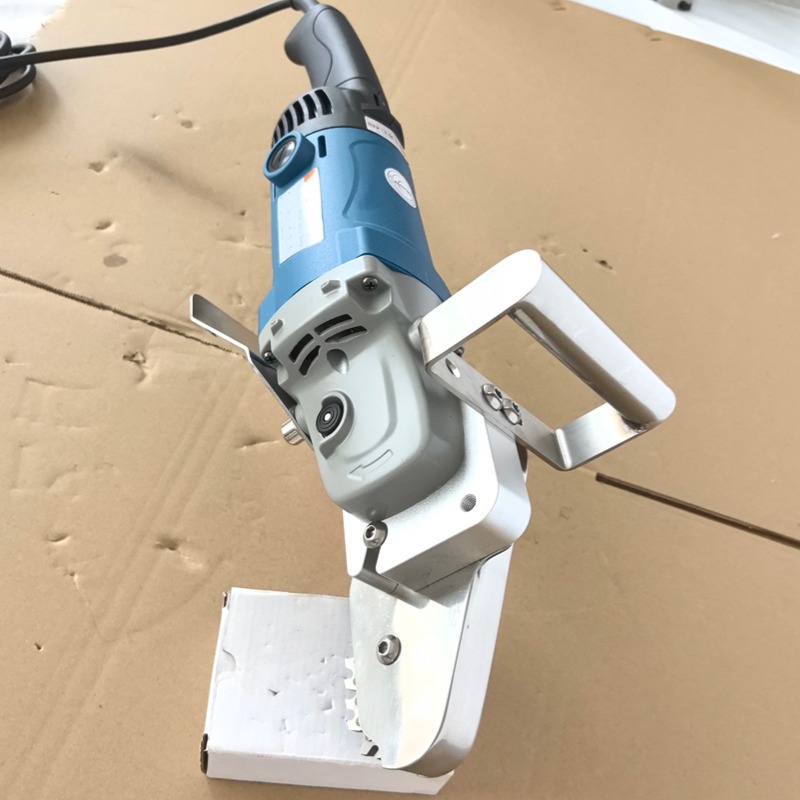

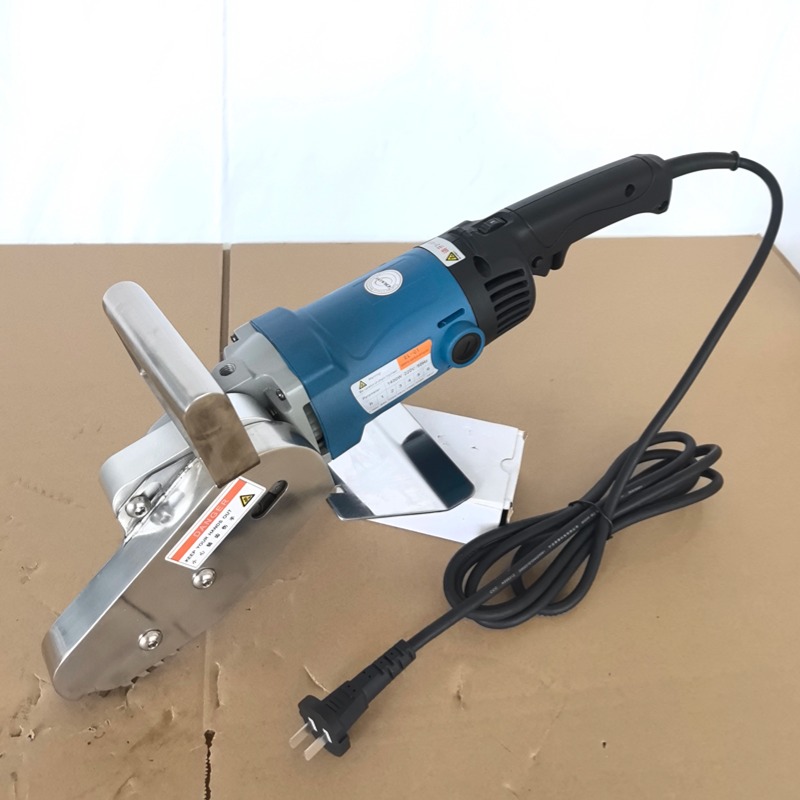

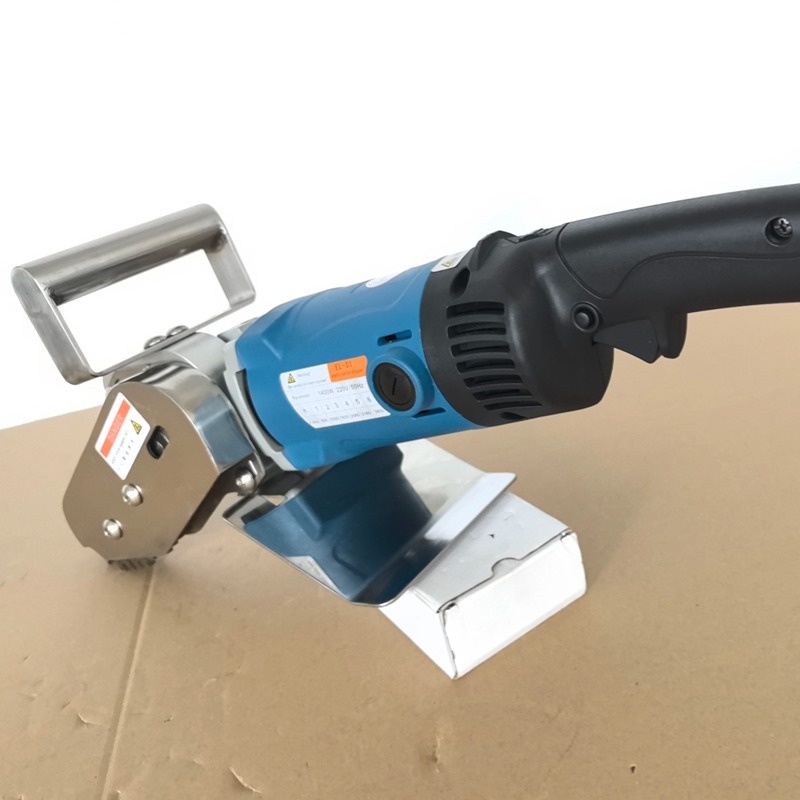

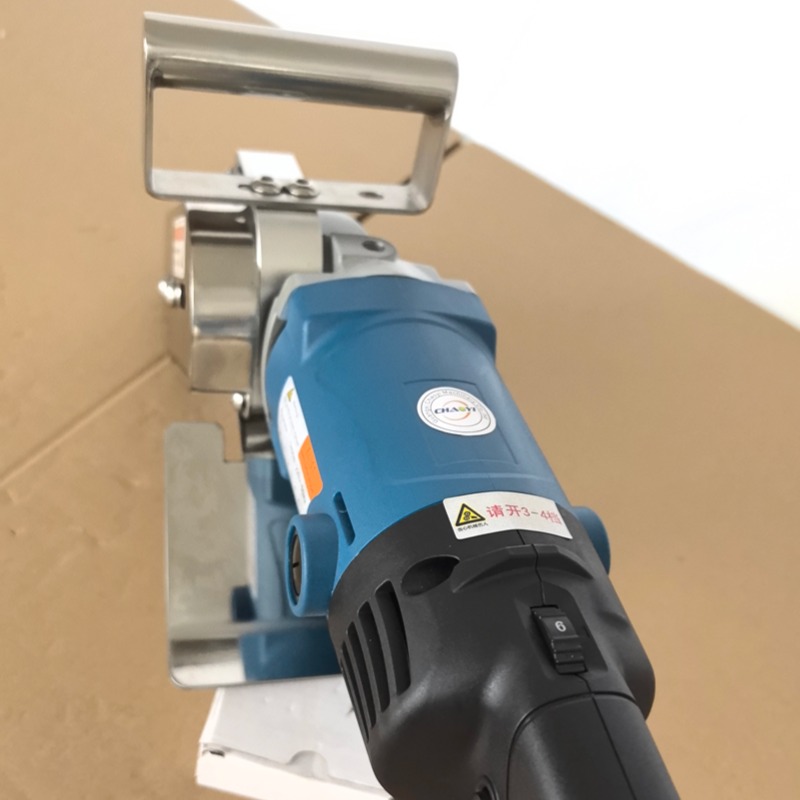

HS-60 Electrical Waste Stripper Picture Dispaly



Requirements for using our technology


Prerequisite for using our technology is that the outside trim must be cut into trim sections. Except from this is the clutch edge. This will be stripped out reciprocally, on the left and right side. Please see the below principle picture for waste segments.
